Description
- Measure and display device for DC and AC Voltage at frequency 50/60 Hz.Range
– (AC Voltage 5-500 VAC (DIRECT), 0-20,000 VAC (With PT).
– (DC Voltage 0-500 VDC (DIRECT).
- When it connects to Potential Transfer (PT) of High Voltage system can set multiplier follow PT Ratio.

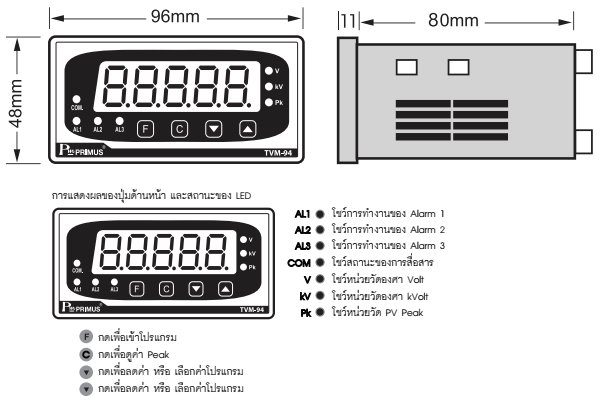

- Display by 7-Segment 5 digit size 0.56 inch made it can display high voltage.
- 3 Alarm Relay Output by 4 function to setting.
- Can communicate with computer via RS-485 MODBUS RTU PROTOCOL.
- Transfer Output 4-20 mA and 0-10 VDC both of Direct and Inverse.
- Lock Function to protect value has changed from screen setting.
- ON-OFF Delay Time for Alarm Output.
- Manual Transfer Output Function can supply signal volume as require by buttons.
- Absolute Input Function show positive value all the time although connect terminal +/- switch or not for TVM-94N-2.
- Function Peak Hold show maximum voltage value.
