TSM-94/TSM-94-B: DIGITAL REMOTE DISPLAY PANEL

DESCRIPTION
• It’s a display device to show the number and alphabet from RS-485 communication
• Receive/Send data with MOD BUS RTU/ASCII
• 7-Segment and 5-ligth display, size 0.56 inches (TSM-94) and size2.3 inches (TSM-94-B)
• There are 3 relay alarms and controlling ON/OFF by using RS-485 communication

OPERATION
TSM-94 is a device that receives information from PC, PLC, HMI, Embedded System, etc. To display the numbers at the terminal (Terminal Station) by sending data through the communication protocol MODBUS RTU or MODBUS ASCII with RS-485 signal.
TSM-94 will operate as a slave device in the communication bus when receiving information from the master device for display. In addition, it can command three relays to ON/OFF with Function Force. Coil can set Device ID, Baud Rate, Parity and Stop Bits

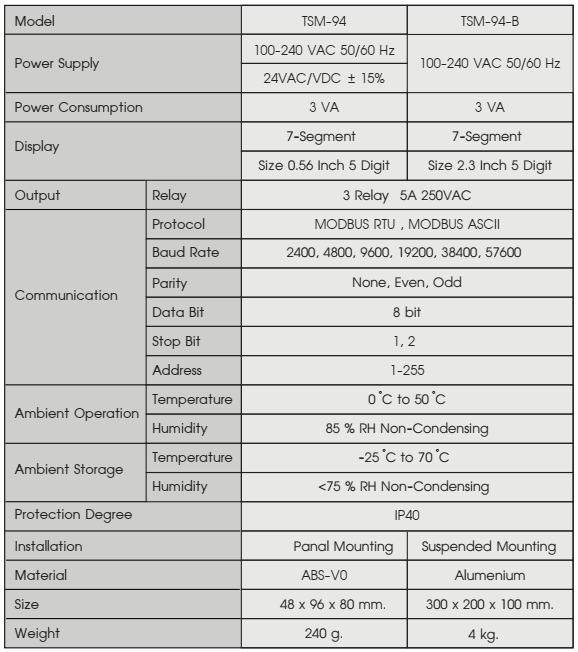

Speciafication

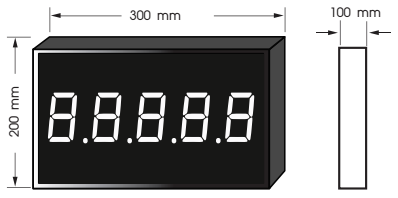

Dimension

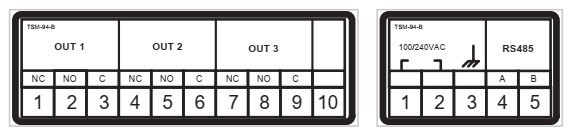

Circuit Diagram

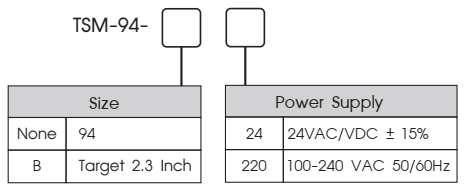

Order Code
