CM-005DN - Gunadaya Solutech

  • CM-005DN is device for display current value and Heater status by connect with CM-005N-4CH.
  • Can connect with CM-005N-4CH maximum 2 device via Monitor panel to show heater current maximum 8 devices.
  • LED show status of each alarm can set Heater Break current cutting and has Auto/Manual system to see Heater status.
  • Show heater current by red 7-Segment 3 digits size 0.56 inch and show Heater position by red 7- Segment 1 digit size 0.39 inch.
  • Decimal point 1 position

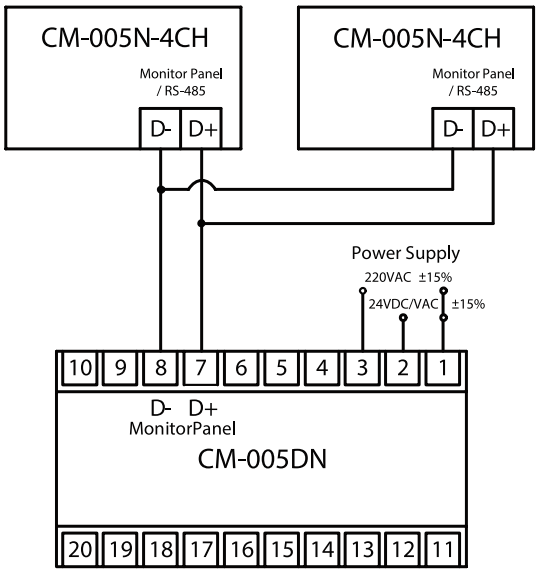

Circuit Diagram

Order Code

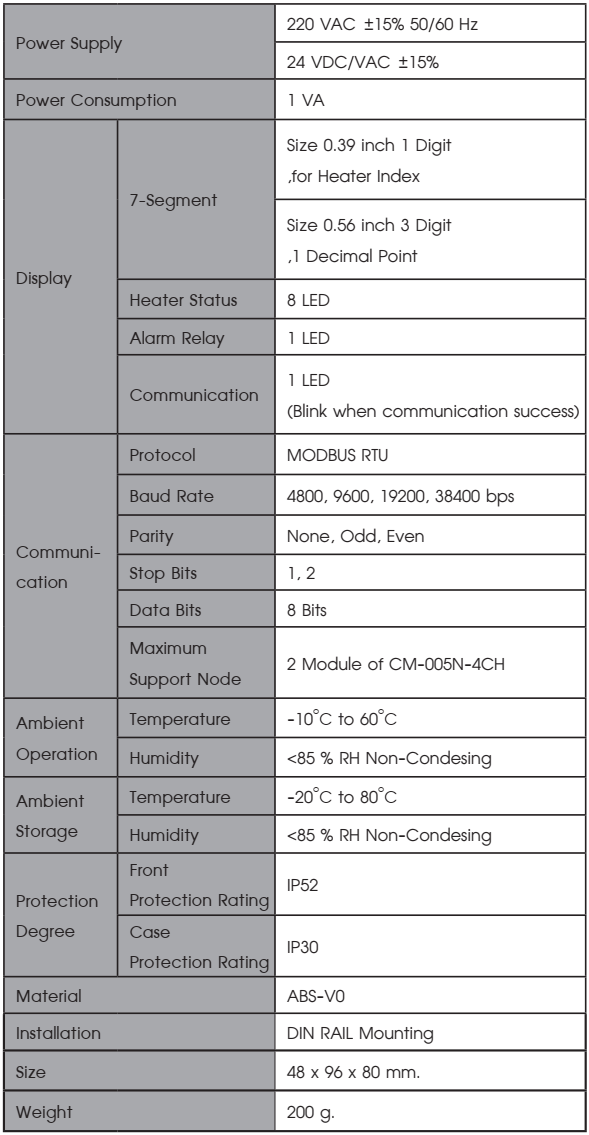

DataSheet (1)

Manual (1)
