• RPL-SERIES is a small, compact, slim relay module.

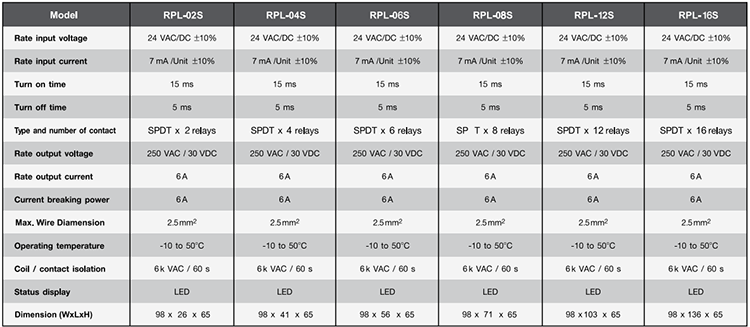

• Receive 24 VAC / DC input voltage types NPN and PNP
• SPDT output 250VAC / 30VDC, 6A output relay

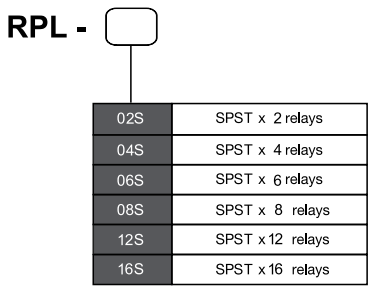

• 1 relay module is available to select relays from 2, 4,
6, 8, 12 and 16 relays.
• Positive or Negative Control Voltage
• Convenient for Wiring, cable and maintenance.
• Save space for installation in the cabinet, MDB
• There is an LED showing the operating status of each relay.
• DIN RAIL installation
RPL-SERIES is a Slim Relay Module that consists of multiple
relays. From 2, 4, 6, 8, 12 and 16 relays are in the same set. Slim,

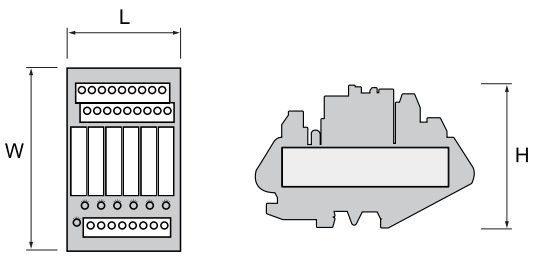

compact structure thus saving installation space The installation style
is DIN RAIL, suitable for installation in electrical cabinets, MDB.

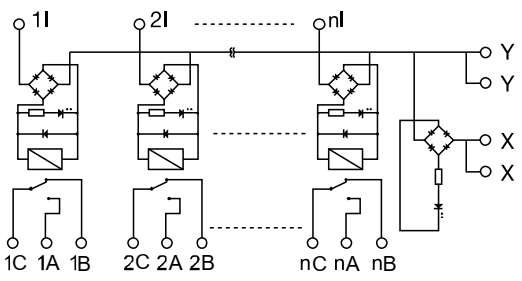

RPL-SERIES can be connected to the output of the PLC or
other devices. That is both PNP and NPN to use contact relays to use.
There is a LED showing the status of the relay. There is a terminal to
wiring 2.5 mm 2 power cable makes it easy to wiring wires and easy
maintenance. The system can withstand temperatures of-10 to 50 ํC
Power supply can be supplied in both 24 VAC/DC. It can be used with
transformers without using Switching Power Supply.
