- It is a device to convert the axis of the shaft of the Encoder into an electric pulse It is a device to convert the axis of the shaft of the Encoder into an electric pulse
- divided by number of pulse
- Number of pulse / cycle can be selected from 25 – 2048 pulse
- Push-pull output can be used for both NPN, PNP Open Collector and Line-Drive
- Push-Pull output signal (A,B,Z) and Line Driver (A, A,B,B,Z,Z)
- Power Supply 8-30VDC (Push-Pull) and 5VDC (Line-Driver)

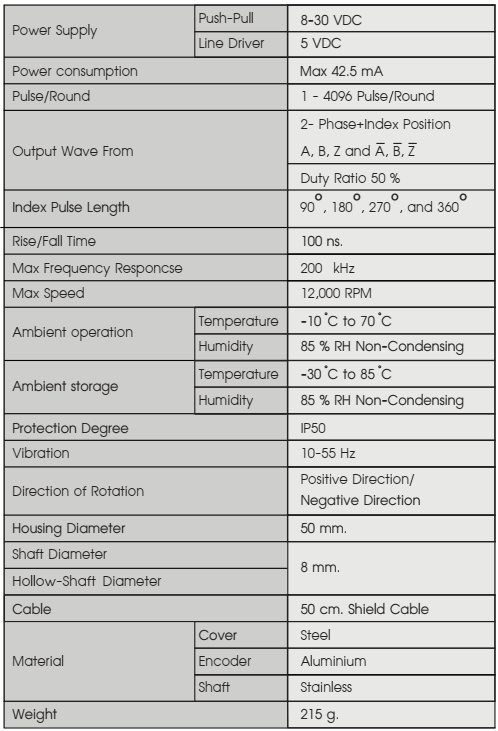

PR-04

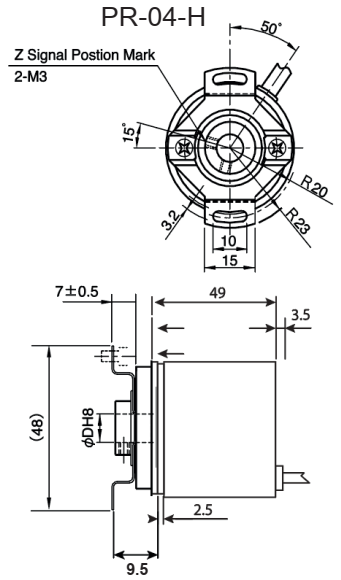

Dimensions

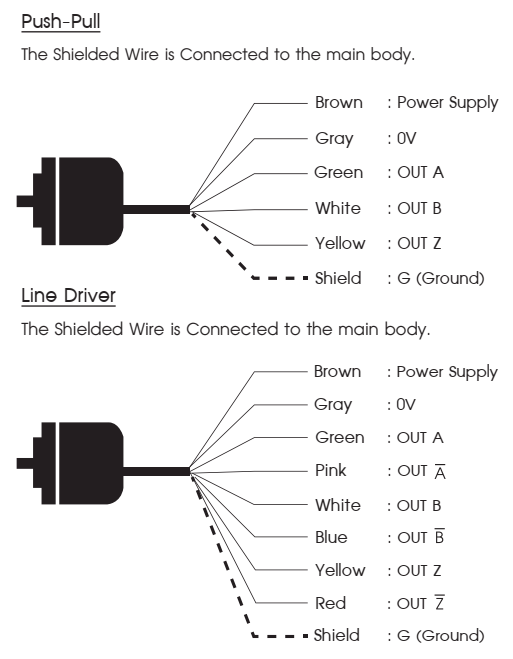

Circuit Diagram

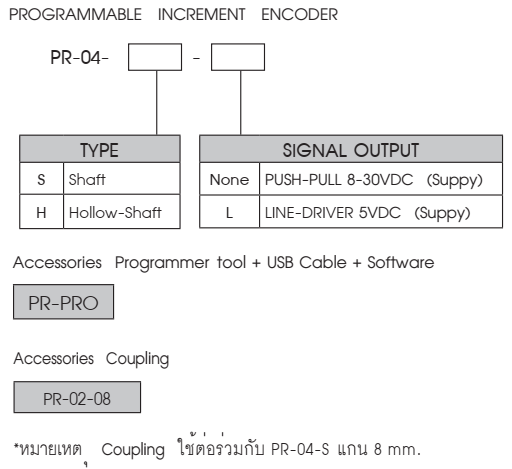

Order Code
