- It is a device to convert the axis of the shaft of the Encoder into an electrical pulse, compact size of 38 mm.
- Number of Pulse/Revolution can be selected from 25-2048 Pulse/ Revolution
- Push-Pull output can be used for both NPN, PNP Open Collector and Line-Driver.
- Push-Pull output signal (A, B, Z) and Line-Driver (A, A, B, B, Z, Z)
- Power supply 8-30 VDC (Push-Pull) and 5 VDC (Line-Driver)

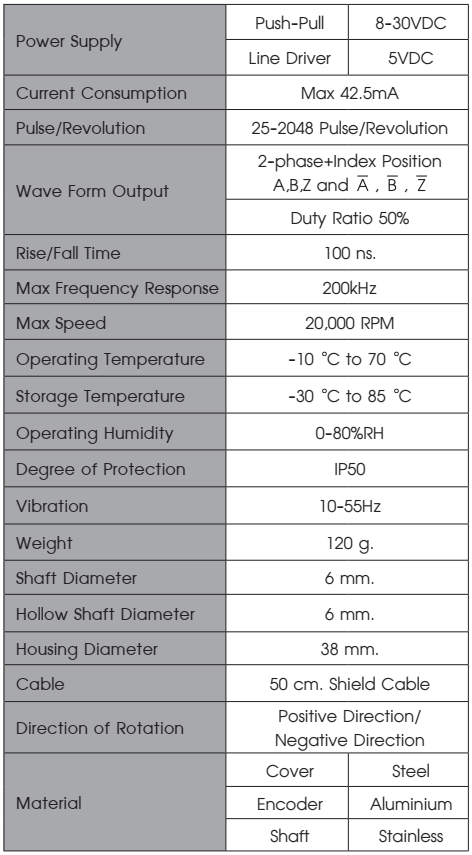

PR-03

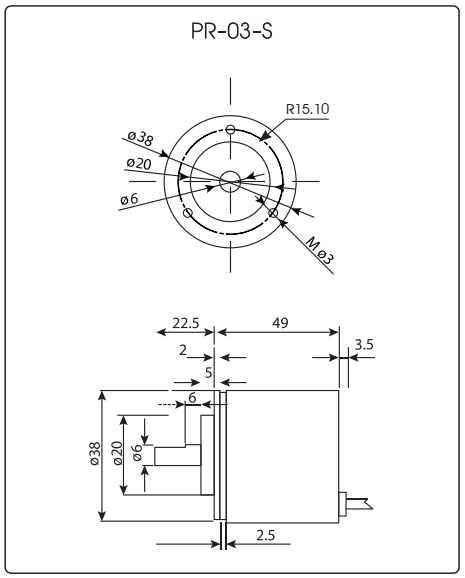

Dimensions

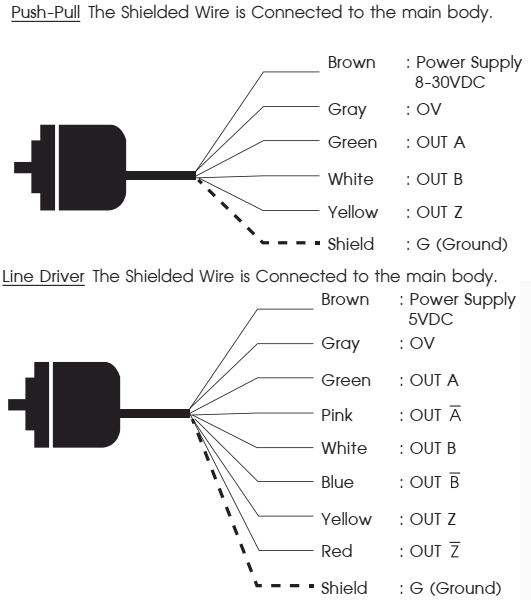

Circuit Diagram

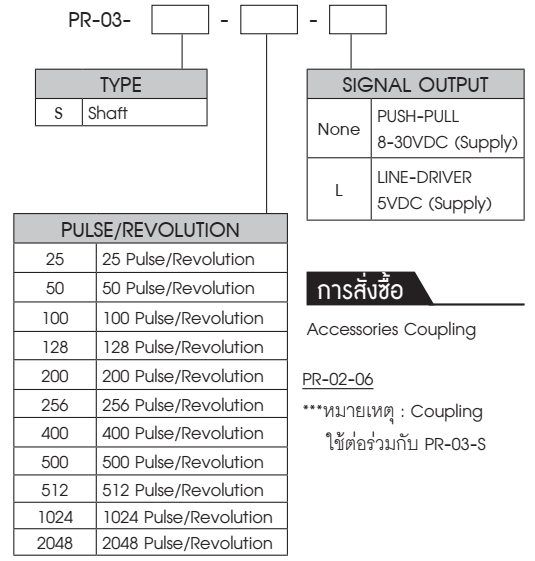

Order Code
