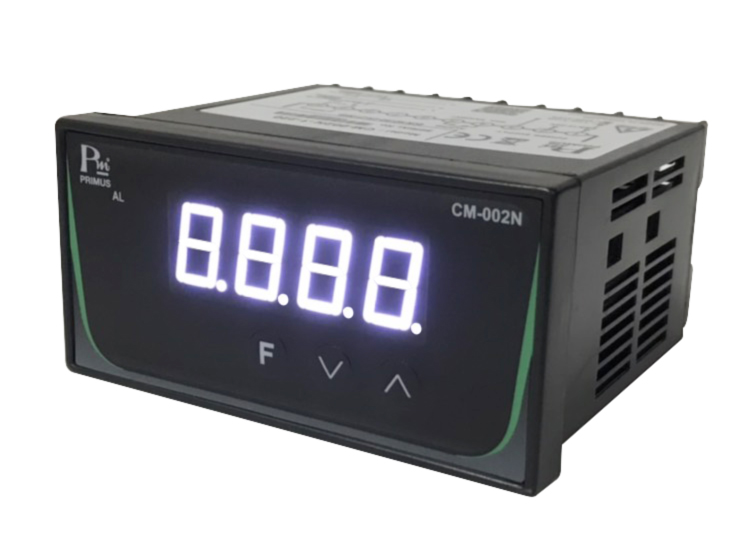

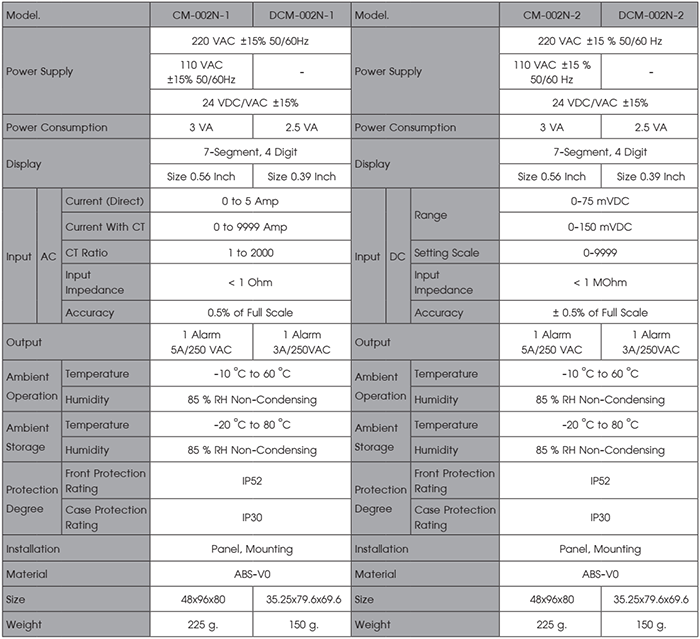

AC current measurement and display meter TRUE RMS at 50-60 Hz frequency And direct current (DC)
• Measuring between O – 5 A (Direct), 0 – 9999 A (With CT SA)
• Measuring between O – 75 mVDC / 0 – 150 mVDC for R-Shunt to measure DC power
• Display with ?-Segment 4 digits, 0.56 inches (for CM-002N) and size 0.39 inches (for DCM-002N)
• There is 1 Alarm Relay Output with 4 Alarm Function in the settings.
– Absolute Value High Low Band Alarm
– Absolute Value High Alarm
– Absolute Value Low Alarm
– Absolute Value High Low Range Alarm
• The CT Ratio can be set from 1 – 2,000 (10,000 / SA).

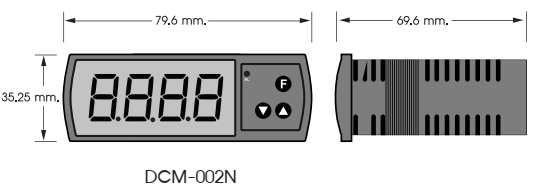

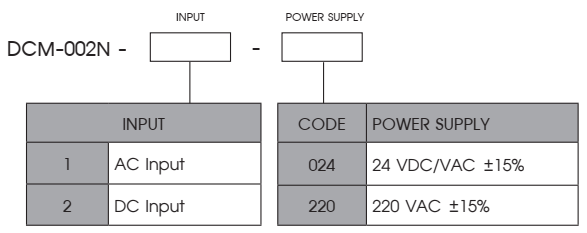

• Available in 2 sizes, CM-002N (48 x 96 mm.) And DCM-002N (33.25 x 79.6 mm.)

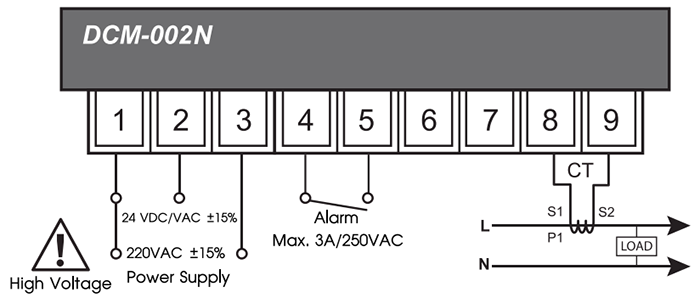

OPERATION
CM – 002N / DCM – 002N Is a device to measure and display alternating current (AC ) values, which can be connected with CT measurement area 0-9999 A and can be directly connected to O – 5 A. For DC current models can be connected to R-Shunt to measure current in the system with a measurement area ofO-75 mVor 0-150 mVtochoose in the same In addition, the program can scale, the input and display area, such as Input O – 75 mV can be programmed to receive O -150 mV input and display the value from O – 9999. There is a Alarm 1 Alarm Relay Output with 4 Function in setting for Load editing as needed
