ㆍ Digital Counting Machine
ㆍ 7-segment display
ㆍ Get input from sensor devices such as Photo Switch, Proximity Switch, Encoder, Contact, NPN, PNP
ㆍ Available operating modes: 7 operating modes
ㆍ Can operate in count up and count down
ㆍ EEPROM mernory keeps counis in cuse of power failure.
ㆍ Can set the count sensitivity.
ㆍ Easy to use program through screen.
ㆍ Can communicate with computer through RS485 port, MODBUS RTU
CMP-72N

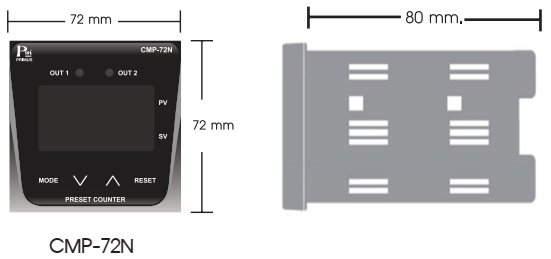

Dimensions

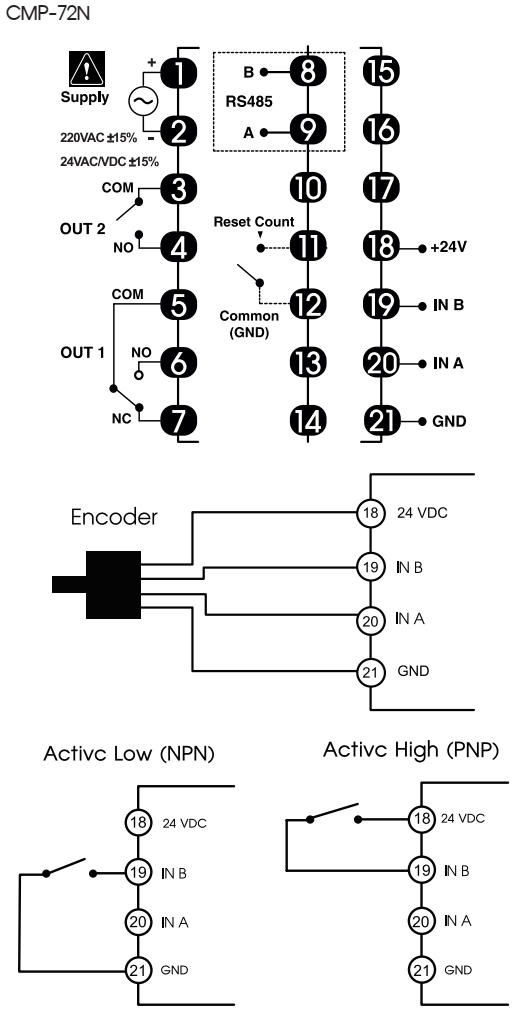

Circuit Diagram

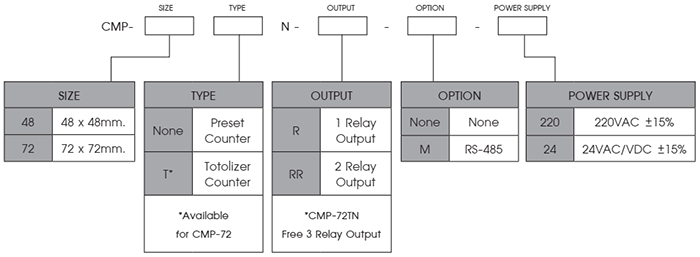

Order Code
