Digital Counting Machine
ㆍ 7-segment display

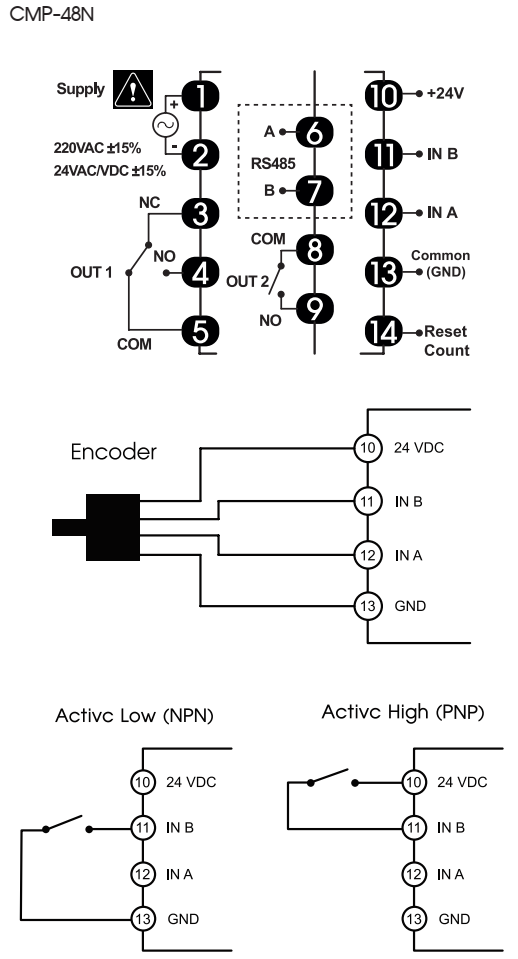

ㆍ Get input from sensor devices such as Photo Switch, Proximity Switch, Encoder, Contact, NPN, PNP
ㆍ Available operating modes: 7 operating modes
ㆍ Can operate in count up and count down
ㆍ EEPROM mernory keeps counis in cuse of power failure.
ㆍ Can set the count sensitivity.
ㆍ Easy to use program through screen.
ㆍ Can communicate with computer through RS485 port, MOSBUS RTU
Operation
Digital display devices displaying results with 7-Segment in Real Time format, receiving input from. Various sensor devices
such as Proximity receiving input from Various sensor devices such as Proximity Switch. Encoder, Mechanical Contact, NPN,
PNP. It can acoept input as fast as 10kHz. 11 operating modesare available with FRAM can link with Computer or PLC Logging,
Edit values via RS485 and can monitor.
