PF-02

Share
    • Timer to delay time before operate Range 30 Sec., 120 Sec.,
    • 16 Minute, 2 Hour(PF-02), 1 Sec, 4 Sec, 30 Sec, 256 Sec (PF-02-1)
    • Able to use AC and DC Supply.
    • Small and Compact Size.
    • Relay LED will ON when Relay operate.

    Operation

    When the user supply power to PF-02. It will delay time before operate
    depend on time from setting. When the time has complete then Relay Output
    will operate. PF-02-Series is able to choose the operation mode. There are 4
    operation mode in one product i.e. 30 sec, 120 sec, 16 Minute, 2 Hour (PF-0),
    1 Sec, 4Sec, 30 Sec, 256 Sec(PF-02-1), by connect Jumper.
    When the user supply power to PF-02. It will delay time before operate
    depend on time from setting. When the time has complete then Relay Output
    will operate. PF-02-Series is able to choose the operation mode. There are 4
    operation mode in one product i.e. 30 sec, 120 sec, 16 Minute, 2 Hour (PF-0),
    1 Sec, 4Sec, 30 Sec, 256 Sec(PF-02-1), by connect Jumper.

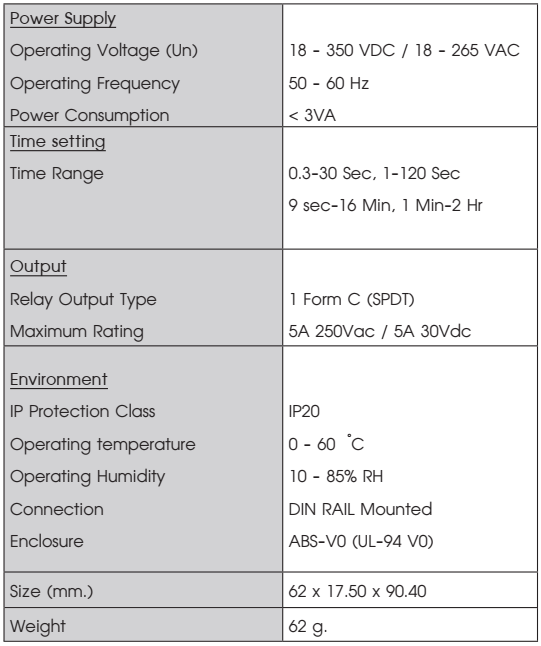

    Product spacification

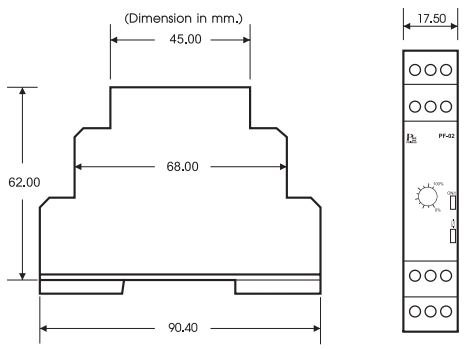

    Dimensions

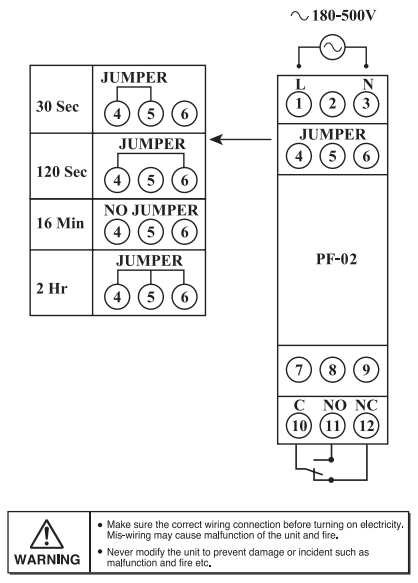

    Circuit Diagram

    Order Code

    Application
