CM-005N-4CH
- CM-005N-4CH is device for checking Heater Break.
- Can check Heater current at 50A maximum 4 devices.
- Easy to install by wiring cable via CT to Heater (CT 50 A inside).
- Alarm output relay notice when heater break or heater short.
- LED shows Heater status of each device.
- 4 Input (1 input / 1 heater) by can choose 140-250 VAC and 10-30 VDC.
- Communication port RS-485 MODBUS RTU PROTOCOL

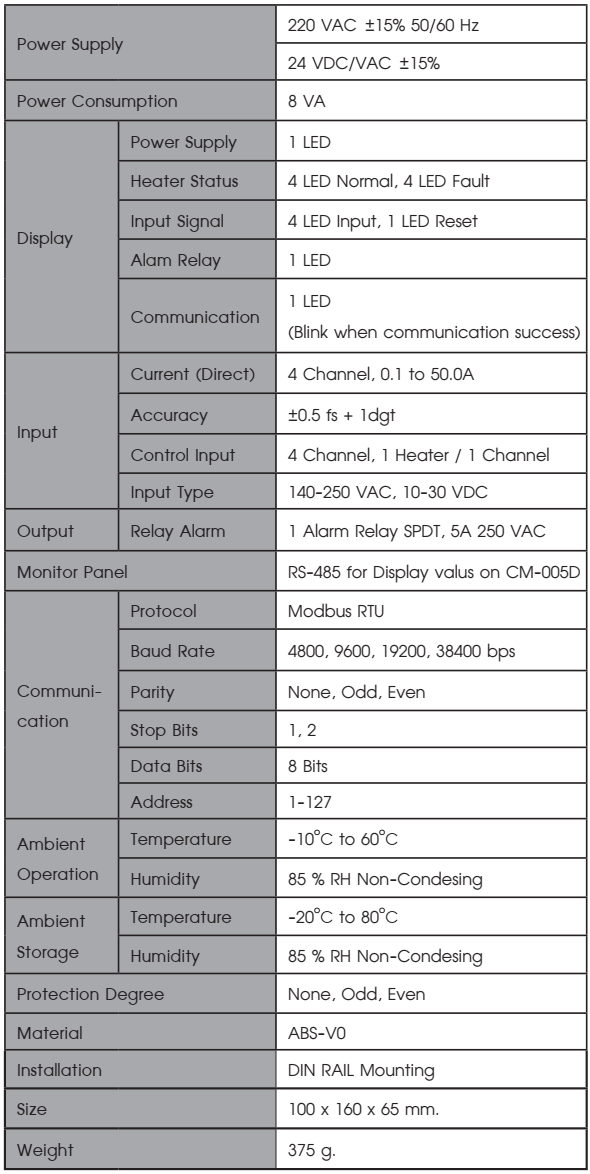

Product spacification

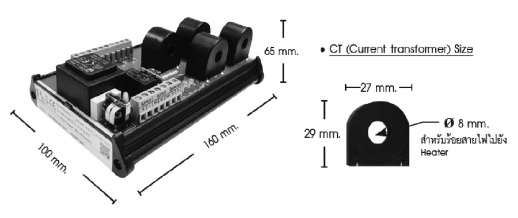

Dimensions

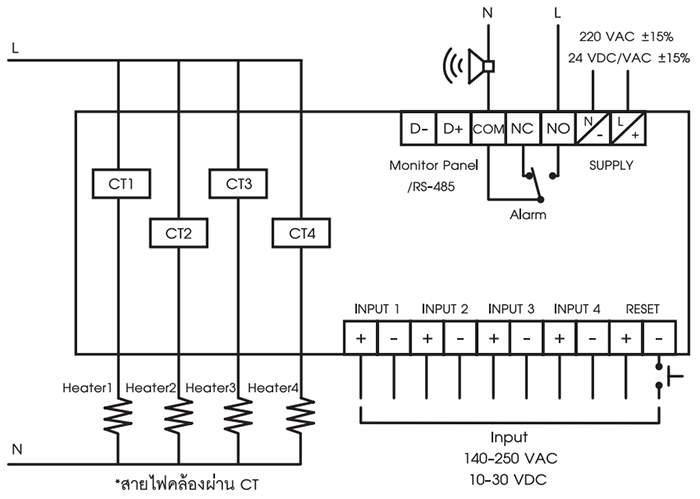

Circuit Diagram

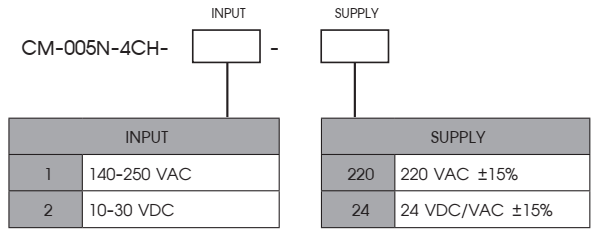

Order Code
Application
Download
DataSheet (1)
Manual (1)
