• KM-09N-A is a device that measures single phase Amp power
    • Display as 7 -Segment size 0.80 inches 4 digits
    • Can be combined with CT up to 10,000 / 5 A
    • CT Ratio can be set from 1 to 2000
    • High accuracy TRUE RMS measurement

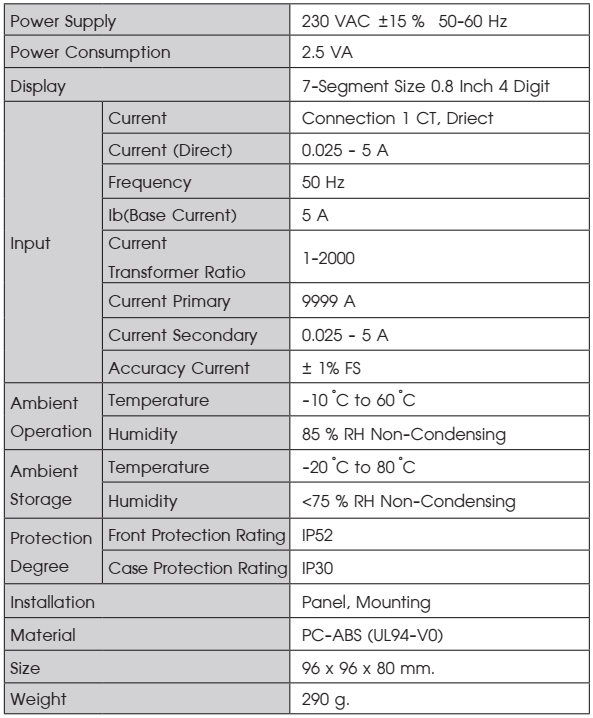

    Product spacification

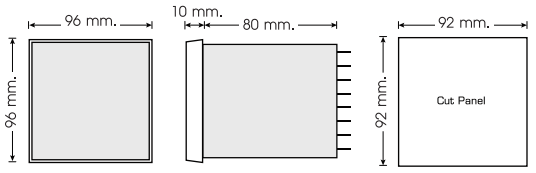

    Dimensions

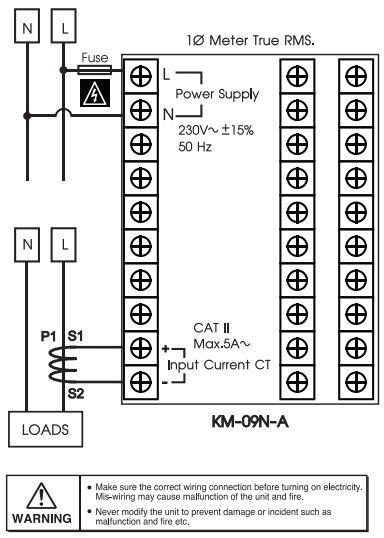

    Circuit Diagram

    Order Code

    Application
