KM-09-W - Gunadaya Solutech

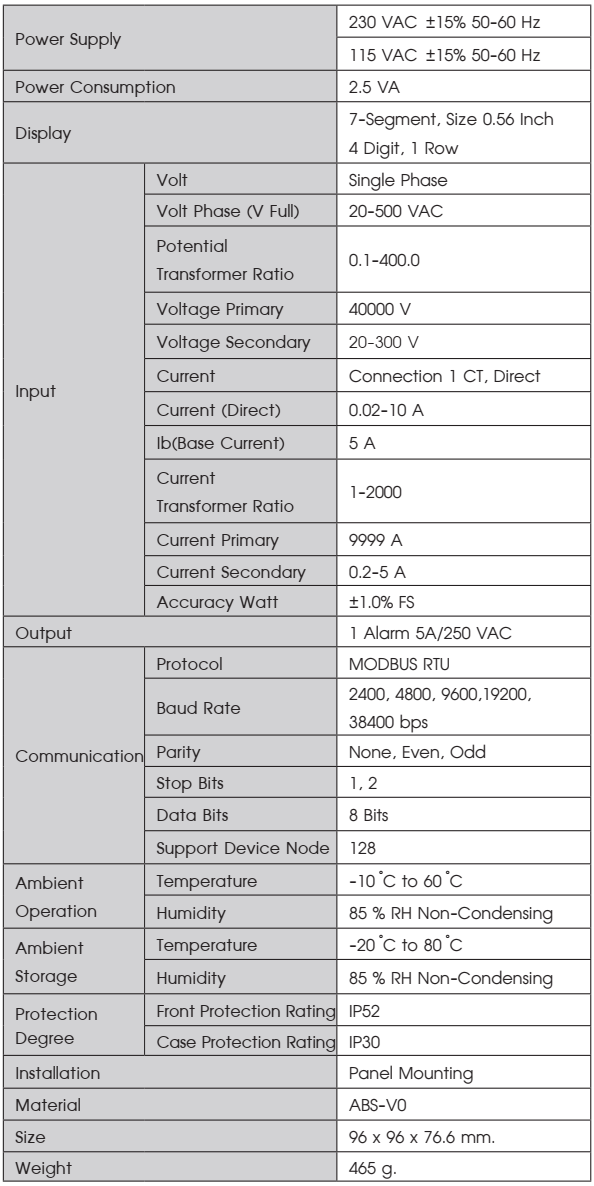

• KM-09-W is a meter that measures Watt, MD for single phase.
• Display as 7-Segment, 0.56 inch, 4 digits, 1 row
• Can be combined with Current Transformer (CT) up to 10,000 /5A and Potential Transformer Ratio ( PT) 0.1-400.0.
• High accuracy TRUE RMS measurement.
• LED status indicator and power unit.
• Peak Hold to see the maximum Watt value in the system.
• Can communicate with computer via RS-485 port. MODBUS RTU PROTOCOL

The display will have 2 pages, indicating the current measured Watt and the Peak demand Watt value value. The Peak Demand Watt calculates the average of 15 minutes by pressing the up arrow. show current Watt value When you press the down arrow, the Peak Demand Watt is displayed. Peak Demand Watt discplay. LED will blink while displaying
KM-09-W with optional RS-485 and Alarm Fault. The alarm can be set to 4 conditions, depending on the conditions of the order

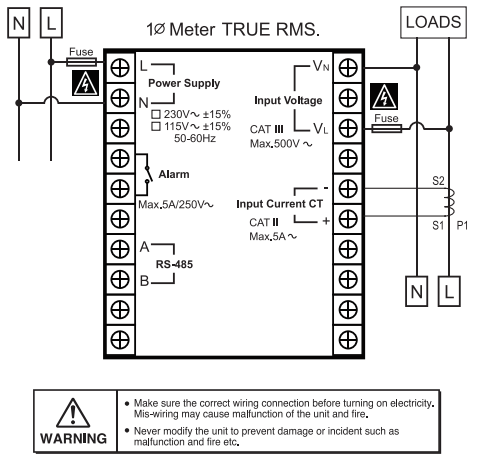

Circuit Diagram

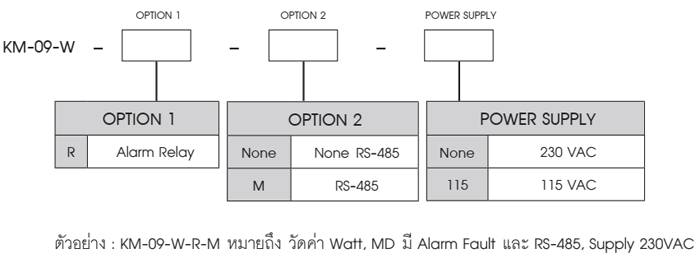

Order Code
