KM-12-A - Gunadaya Solutech

• KM-12-A is a device that measures current value. Can display three phase R, S, T simultaneously
• 7-Segment display size 0.56 in 4 digits , 3 rows
• Measurement area
: Current: 0.02-1 O A (in case of direct connection)
: Maximum current of 9999 A (in case of joining with CT)
• Can be combined with CT up to 10,000 / 5A
• High accuracy TRUE RMS measurement.
• Frequency range 45-65 Hz
• LED status indicator and power unit.
• Can communicate with computer via RS-485 port MODBUS RTU PROTOCOL
• Peak Hold to see the maximum current in the system

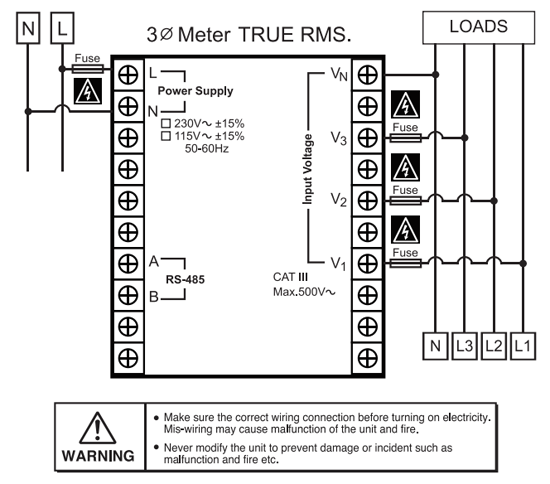

Circuit Diagram

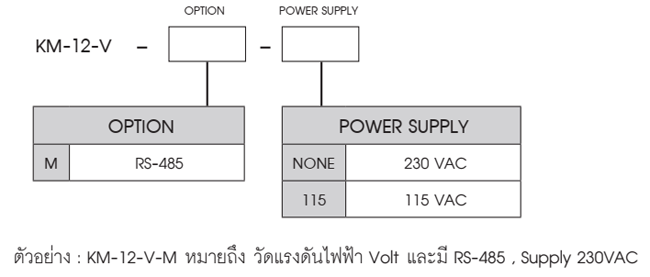

Order Code

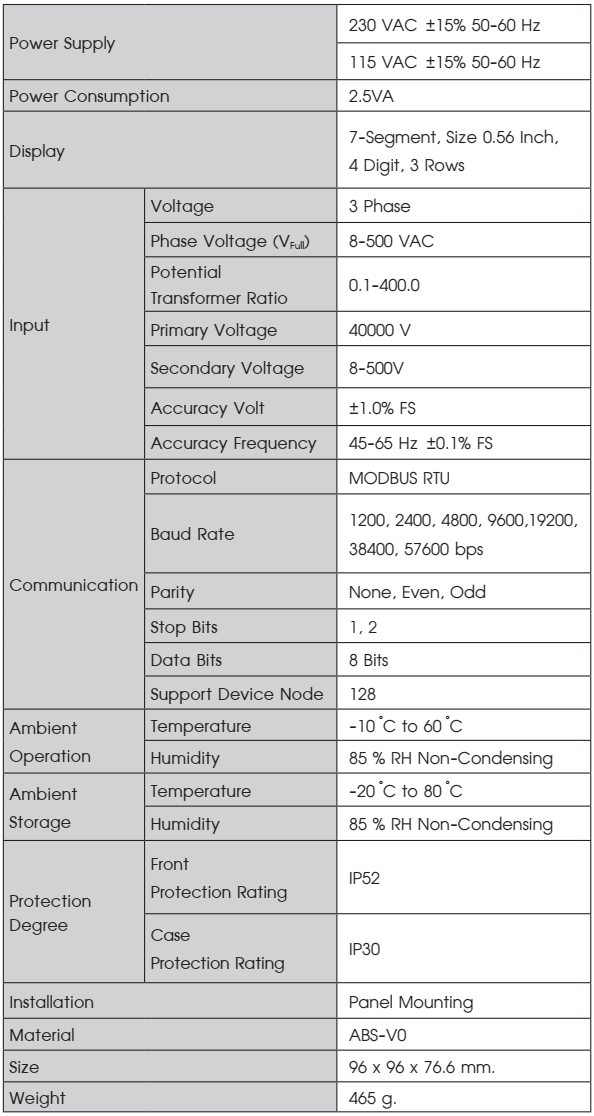

DataSheet (2)

Manual (1)
