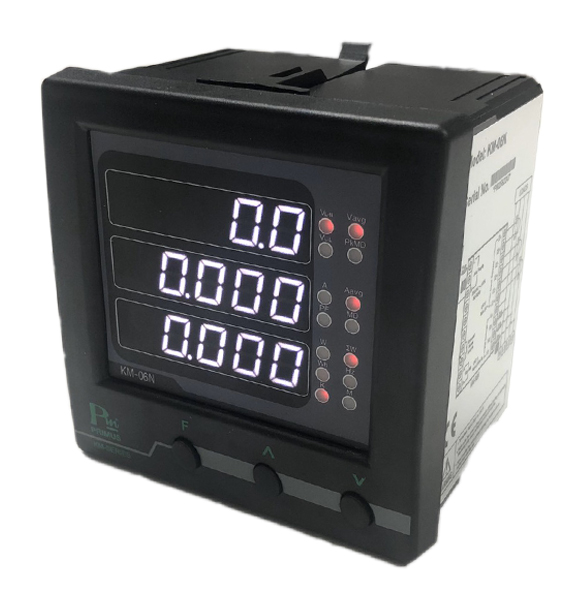

KM-06N - Gunadaya Solutech

• KM-06N is a device that measures kW, total kW, MD, kWh,VL-L, VL-N, A, A AVG, PF
• 7-Segment display, 0.56 ; 5 digits, 3 rows
• PT Ratio and CT Ratio can be set from the program.
• LED status indicator and power unit.
• Can be recorded to computer via RS-485 MODBUS RTU

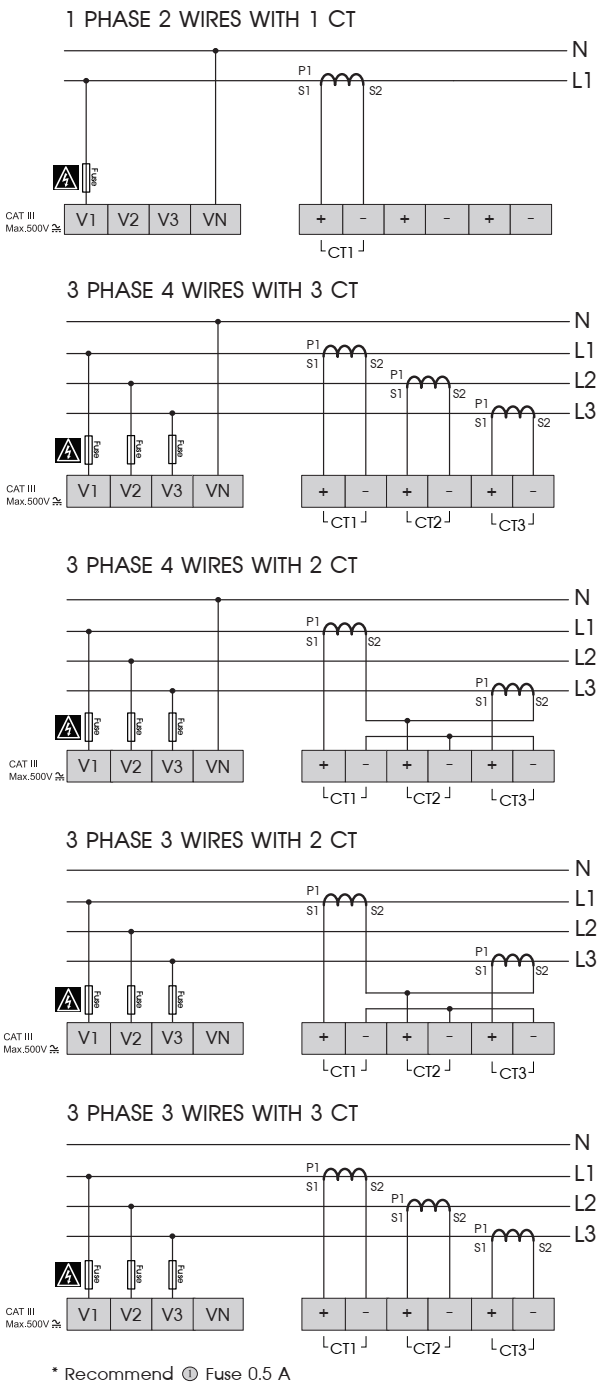

Circuit Diagram

Order Code

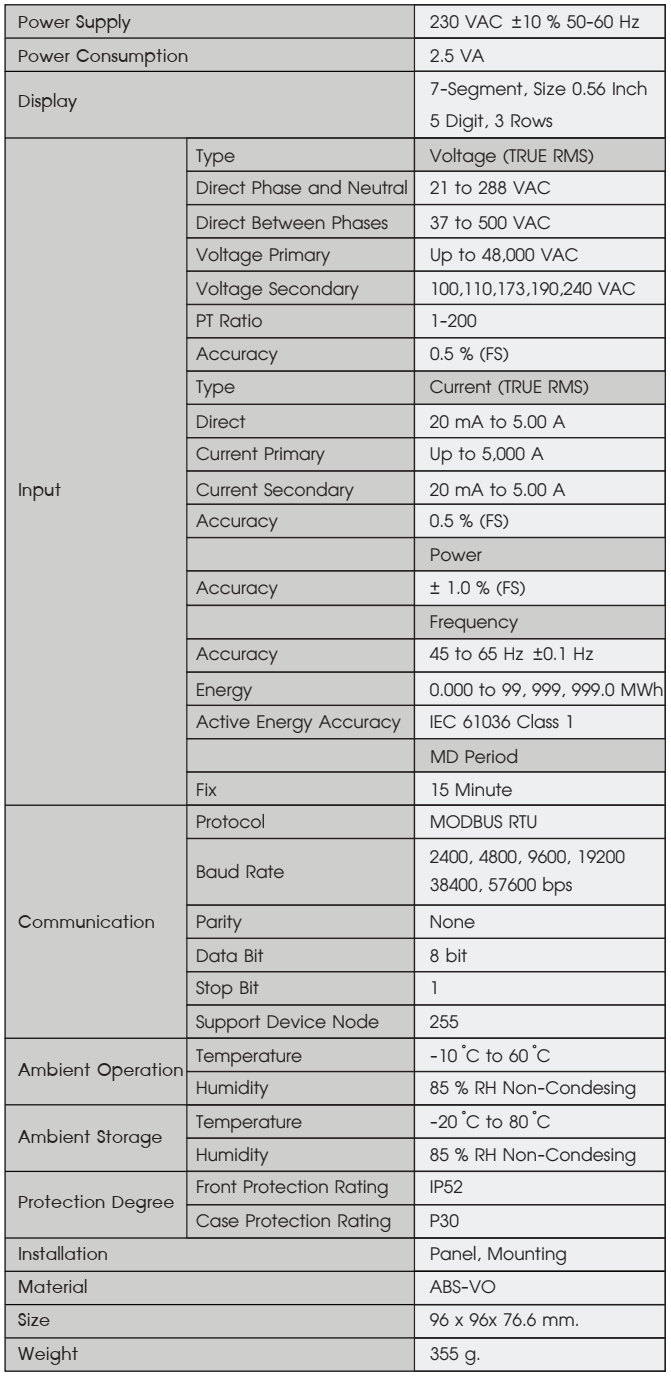

DataSheet (3)

Manual (2)
