KM-03 - Gunadaya Solutech

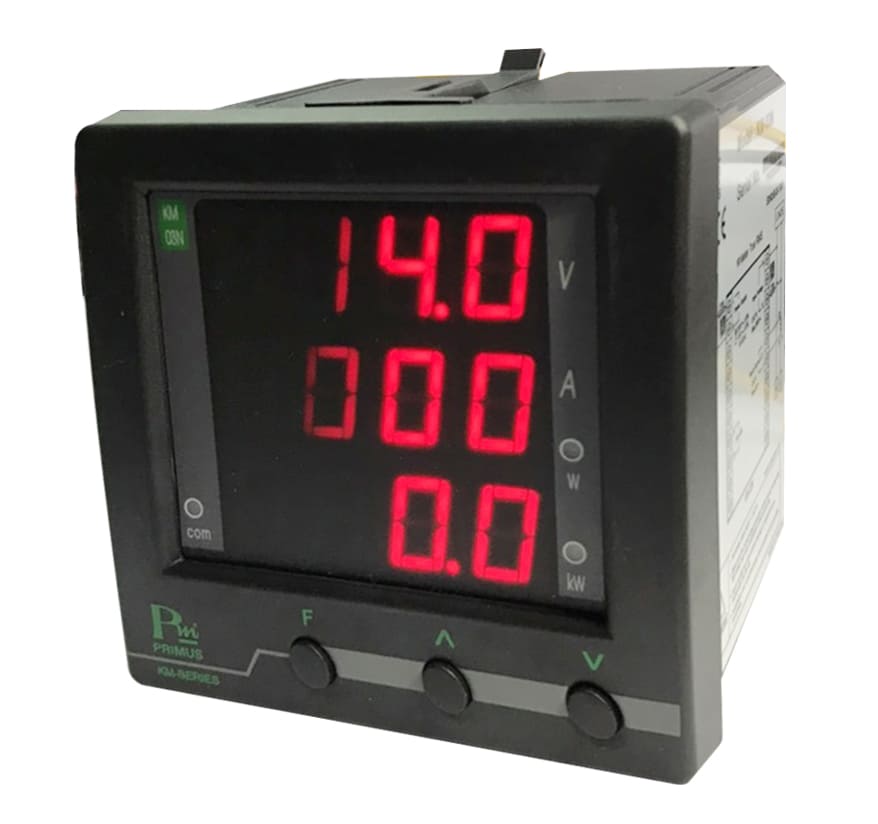

• KM-03N is a device that measures Volt, Amp, Watt system1 phase.
• Can be combined with CT up to 10,000 / 5 A.
• 7-Segment display size 0.56 in 4 digits, 3 rows
• High accuracy TRUE RMS measurement.
• LED status indicator and power unit.
• Data can be recorded to computer via RS-485 MODBUS RTU PROTOCOL

The display will have a 1 page display Volt, Amp, Watt measured at the current time. The LED com (Communication) will flash every time communication is made via RS-485, MODBUS RTU

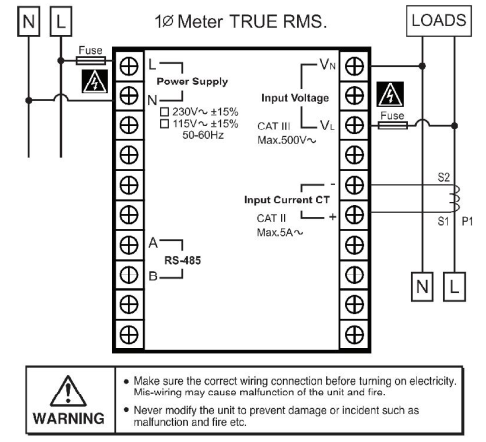

Circuit Diagram

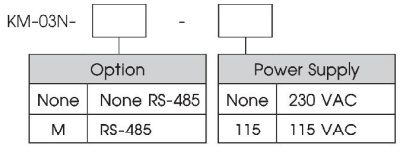

Order Code
