Description

• VPM-05-D is relay to protect Over-Under voltage, Unbalance phase, Phase sequence.
• Electrical system 1-Phase and 3-Phase, 3 Wire/4 Wire.
• Measure accurate in True RMS.
• Show voltage result by 7-Segment LED 3 Digits size 0.39 inches

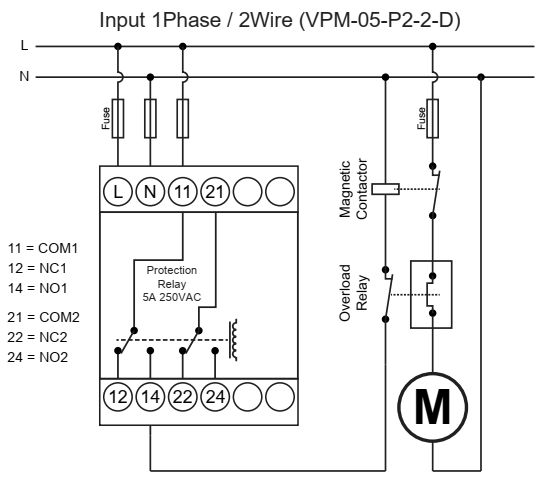

• Easy to wiring
• Output Relay size 5 A, 250 VAC, DPDT.
• DIN Rail installation.
• LED show status of output relay.
