RMN-006 - Gunadaya Solutech

  • Drive electrical current, voltage 4 – 20 mA or 0 – 10 VDC, converted to 8-bit digital data, 4 channels
  • Display performance with LED Power Supply (Green), Run (Orange), and Alarm (Red)
  • There is 1 Relay Alarm when there is a communication error.

OPERATION
RMN – 006 is a 4 – 20 mA or 0 – 10 VDC signal driver, then converted to 8-bit resolution data. It is compatible with RMN-005. The 8-bit analog input signal reading device by using with RMN-005

2-Wire,2-Wire Remote System,2Wire,Analog Output Module

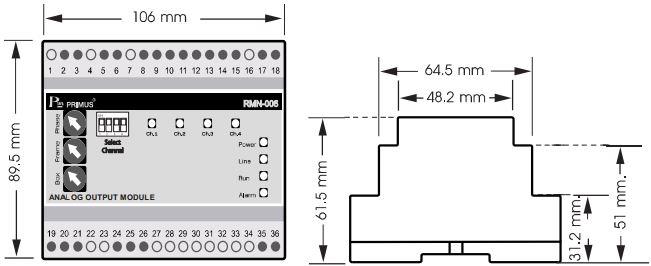

Dimensions

2-Wire,2-Wire Remote System,2Wire,Analog Output Module

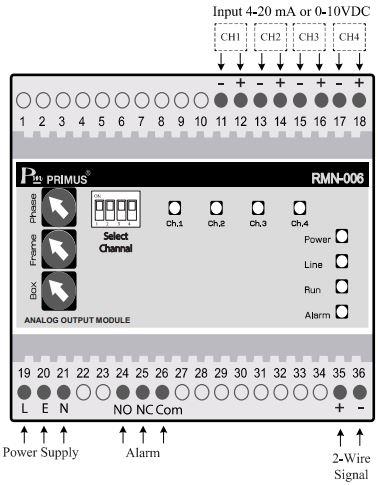

Circuit Diagram

2-Wire,2-Wire Remote System,2Wire,Analog Output Module

Order Code

2-Wire,2-Wire Remote System,2Wire,Analog Output Module

Application

Download

DataSheet (2)
