- Converter from RS485 to LoRawan.
- Able to handle the communicate devices via RS485.
- Modbus RTU as much to 10 devices and record data 12 Register.
- Able to set the MODBUS table record data via an software.
- LoRaWAN Class A Communication.
- Transmit Power +20dBm (E.I.R.P).
- Radio frequency band AS923 : 923 – 925 MHz.
- Transmitter Distance 1 km in an open area.
- 4 LED indication (Power, LoRa, Tx, Rx ).
- Suitable for Smart Industries, Facilities Management, Smart Building Applicaton.
RM-012-L

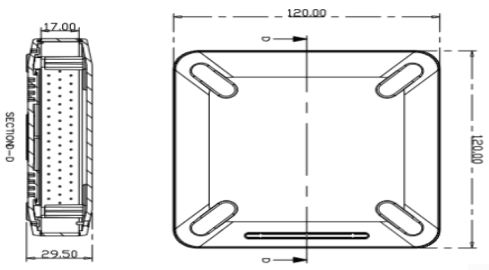

Dimensions

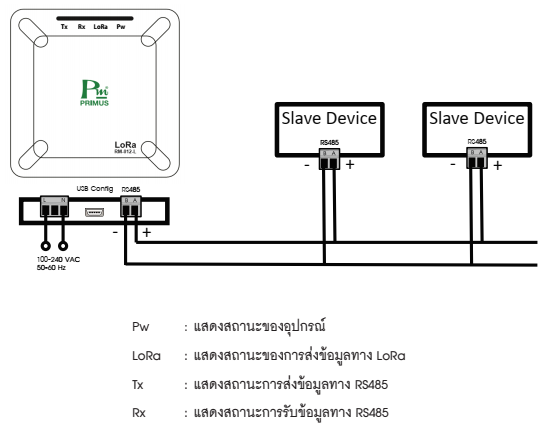

Circuit Diagram
Order Code
RM-012-L
