RHM-004-00

• Temperature and Relative humidity equipment together and convert the temperature
and relative humidity signals into standard electrical signals (Output)
– DC Current 4 – 20 mA
– DC Voltage 0 – 10 VDC
– RS-485 (Modbus RTU Protocol) Baud rate 2,400, 4,800, 9,600, 19,200, 38,400
• Temperature measurement range 0 – 100 C
• Relative humidity measurement range 0 – 100% RH
• Long axis 2 sizes structure (Probe axis made from stainless)
– Long axis 300 mm
– Long axis 500 mm
• Suitable for installation temperature and relative humidity inside the oven up to
100 ํC, disinfection tanks, dehumidifiers, etc. By inserting the hole into the cabinet,
the skull is located outside the cabinet, which has an internal electronic circuit.
It can be used with a thermostatic oven
• There is a probe tip on the silicon carbonate filter to protect the dust and mounting
flange for mounting

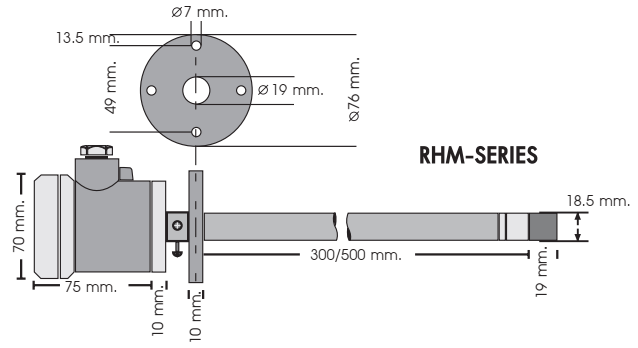

Dimensions

Circuit Diagram

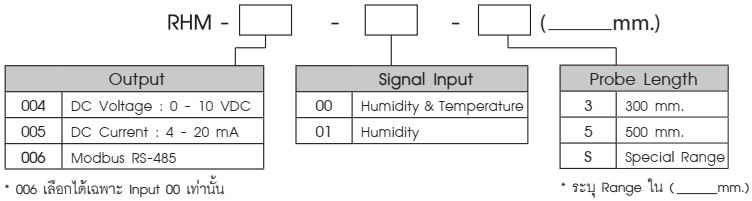

Order Code

Application
