ㆍTemperature and Humidity measurement in one device. It converts
temperature and humidity signal to standard electrical signal (Output).
– DC Current 4-20 mA.
– DC Voltage 0-10 VDC
– RS-485 (Protocol RTU Modbus)
Baud Rate : 4800, 9600, 19200, 38400 bps
ㆍ Temperature measure range 0-100 *C.
ㆍHumidity measure range 0-100% RH.
ㆍSuitable to install on ceiling or inside room.
ㆍCan install dust and water stream area.
HM-004N-00

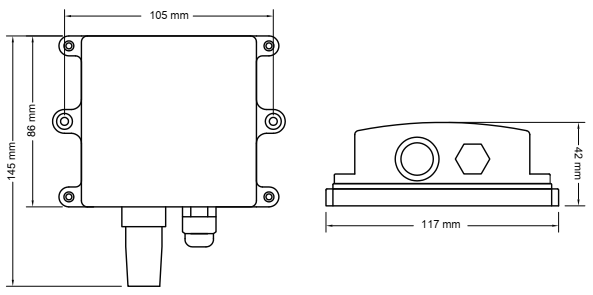

Dimension
Circuit Diagram
Order Code
