DESCRIPTION
• Input voltage 120 – 240VAC ( Range 90-264VAC) ( 1 Phase)/100-320VDC
• Output 30 W ( 24 VDC, 1.2 A )
• There is a protection system for Short Circuit, Overload, Over temperature protection
• Isolation CLASS2, no grounding needed ( No PE connector)

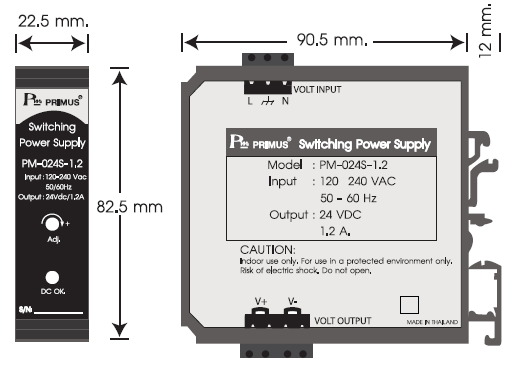

• Compact size
• DIN RAIL installation
• Suitable for applications that require SELV and PELV systems
– SELV = Safety Extra Low Voltage
– PELV = Protective Extra Low Voltage
