DESCRIPTION
• Input voltage 120 – 230VAC ( Range 90-264VAC)
• Output 120 W ( 24 VDC, 5 A )
• There is a protection system for Short Circuit, Overload, Over temperature protection
• Isolation CLASS2, no grounding needed ( No PE connector)
• Compact size
• DIN RAIL installation
• Suitable for applications that require SELV and PELV systems
– SELV = Safety Extra Low Voltage
PM-024S-5: Switching Power Supply 5A

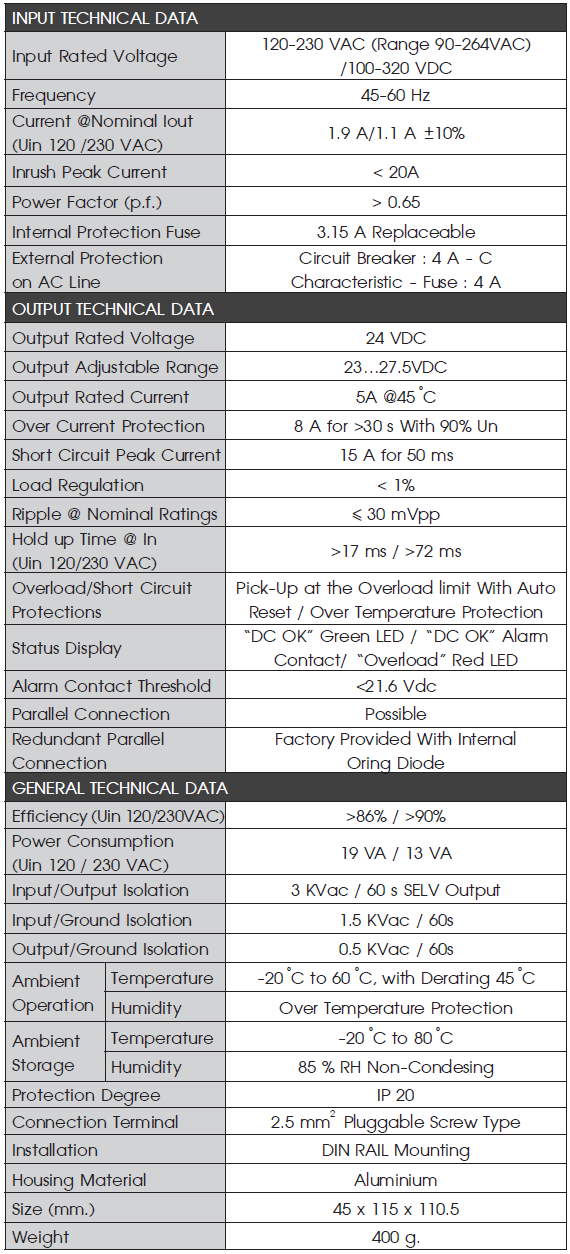

Speciafication

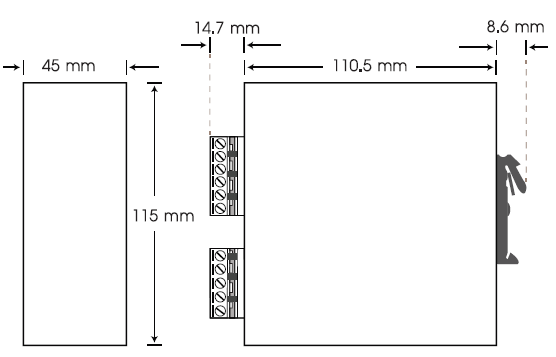

Dimension

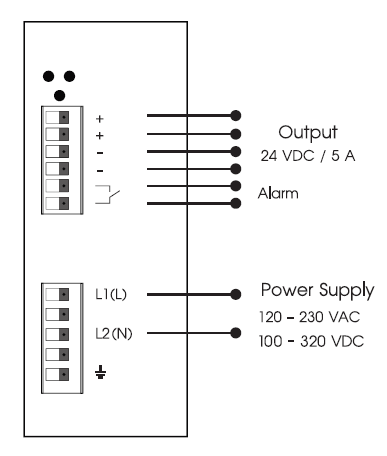

Circuit Diagram
Order Code
