DESCRIPTION
• Input voltage 120 – 230VAC ( Range 90 – 264VAC) ( 1 Phase)/ 100-320VDC
• Output 70 W ( 24 VDC, 2.5 A)
• There is a protection system for Short Circuit, Overload, Over temperature protection
• Isolation CLASS2, no grounding needed ( No PE connector)
• Compact size
• DIN RAIL installation
• Suitable for applications that require SELV and PELV systems
– SELV = Safety Extra Low Voltage
– PELV = Protective Extra Low Voltage
PM-024S-2.5: Switching Power Supply 2.5A

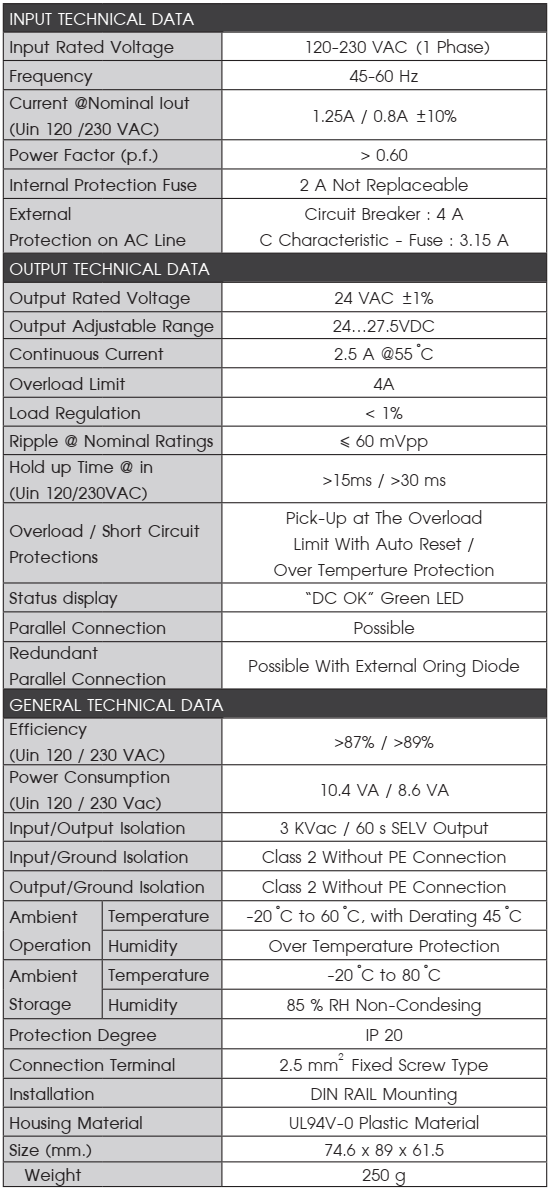

Speciafication

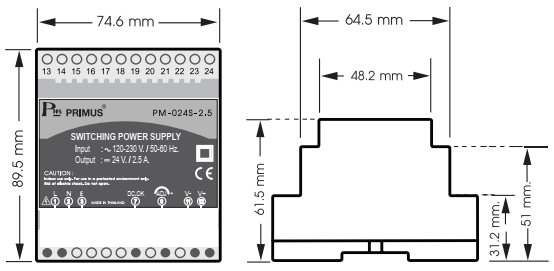

Dimension

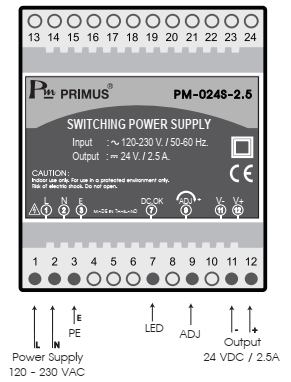

Circuit Diagram
Order Code
