LM-002-S - Gunadaya Solutech

ㆍ Paddle switch detect solid object such as rice with peel, seed, cereals etc.

ㆍ Power supply 220VAC/50-60Hz.

ㆍ Output Relay Contact 5A 250VAC.

ㆍ Thread installation LM-001N : dimension 0 25 mm. (3/4 inches) and LM-002/LM-002-S : dimension 047 mm.

ㆍ Operation temperature -10 to 60 C

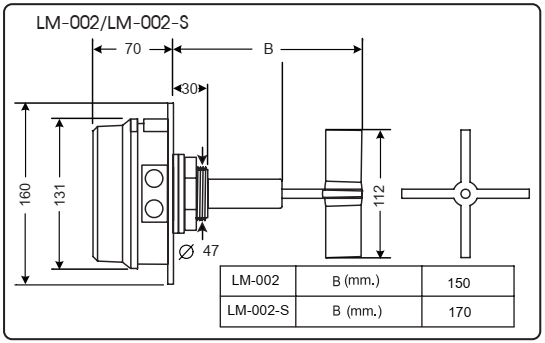

Dimensions

Circuit Diagram

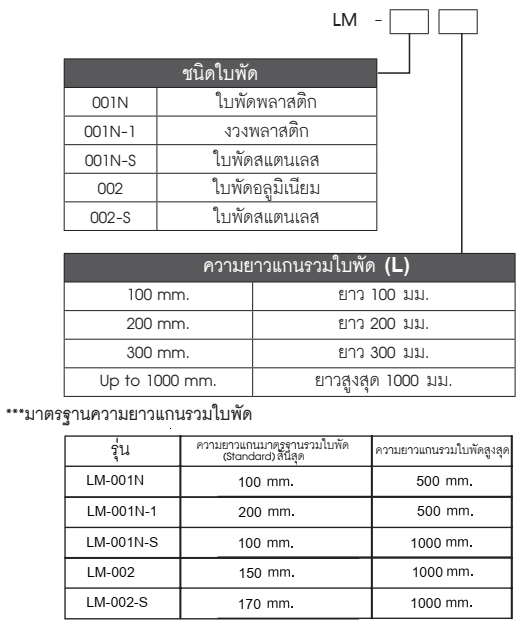

Order Code

Application

Download

DataSheet (2)
