KM-09N-V
• KM-09N-V is a signal phase voltmeter
• Can be connected with PT up to 44KV/ 110 VAC, 96 KV/220 VAC
• PT Ratio can be set from 0.1 to 400.0
• High accuracy TRUE RMS measurement.
• LED indicator display electrical unit

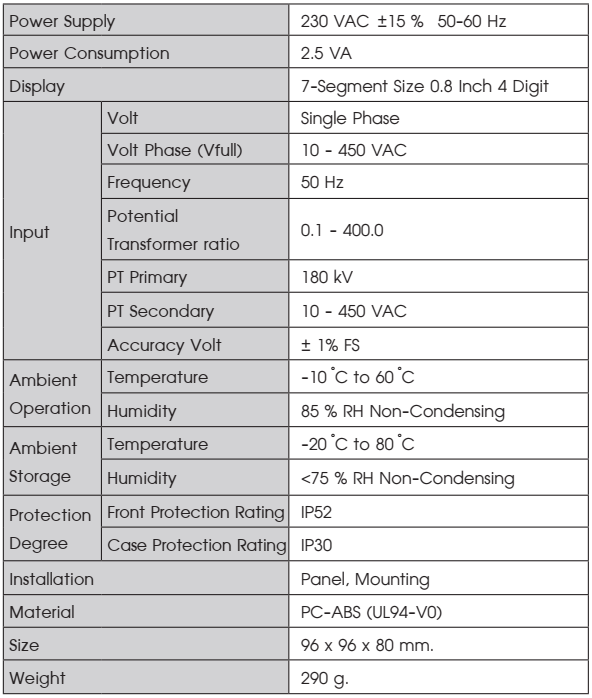

Product spacification

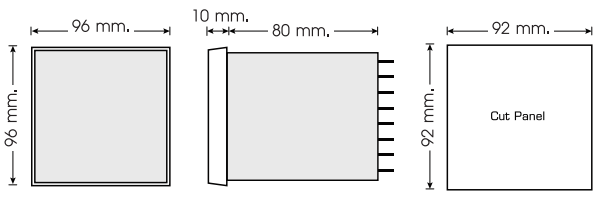

Dimensions

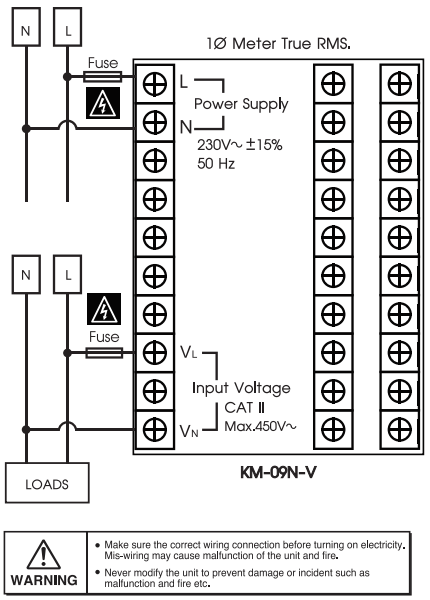

Circuit Diagram
Order Code
Application
Download
DataSheet (2)
Manual (1)
