• RP -XXWA is a compact relay module that consists of relays many
are inthe same set.
• Receive 220 VAC input voltage
• DPDT 250 VAC, SA output relay

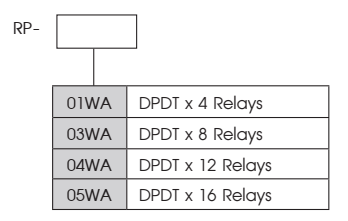

• 1 relay module is available to select the number of relays from
2, 4, 8, 12 and 16 relays.
• Convenient to wiring cables and repairing maintenance
• Save space for installation in the cabinet, MDB
• There is an LED showing the operating status of each relay.
• DIN RAIL installation
Operation :
RP-XXWA is a Slim Relay Module that consists of multiple
relays. From 4, 8, 12 and 16 relays are in the same set. Slim, compact
structure thus saving installation space The installation style is DIN RAIL,
suitable for installation in electrical cabinets, MDB.
RP-XXWA can be connected to the output of the PLC or
other devices. That is both PNP and NPN to use contact relays to use.
There is a LED showing the status of the relay. There is a terminal towiring 2.5 mm 2 power cable makes it easy to wiring wires and easymaintenance. The system can withstand temperatures of-1 Oto 50 ํC.
