• KM-09-P is a device that measures 1-phase Power Factor.
• Display as 7-Segment, 0.56 inch, 4 digits, 1 row
• High accuracy TRUE RMS measurement.
• LED status indicator and power unit.
• Power Factor Range: 0.000-1.000
• Can communicate with computer via RS-485 port MODBUS RTU PROTOCOL

OPERATION
Display is only 1 Page, which shows the Power Factor measured value. Alarm Fault Status LED and Communication

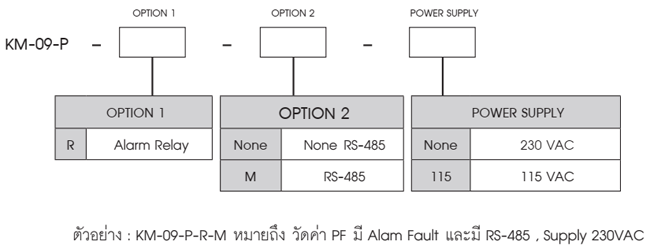

KM-09-P has optional RS-485 and Alarm Fault, which can be set to 4 functions depending on the order
