CMA-004: Digital Hygrostat And Thermostat Controller

Category:

Description

• CMA-004-Series is a digital hygrostat and thermostat controller.
Measure Range
– Humidity : 1-100 % RH
– Temperature : 0.00-80.0°C
•Display by 7-Segment LED 3 Digits
•There are Relay Output and Alarm Output (CMA-004-1 amount 1 Relay, 1 Alarm
and CMA-004-2 amount 2 Relay, 2 Alarm).
•Direct Control (Cooling) and Reverse Control (Heating) operation control functions.
•Comunication with computer via RS-485 MODBUS RTU Protocol

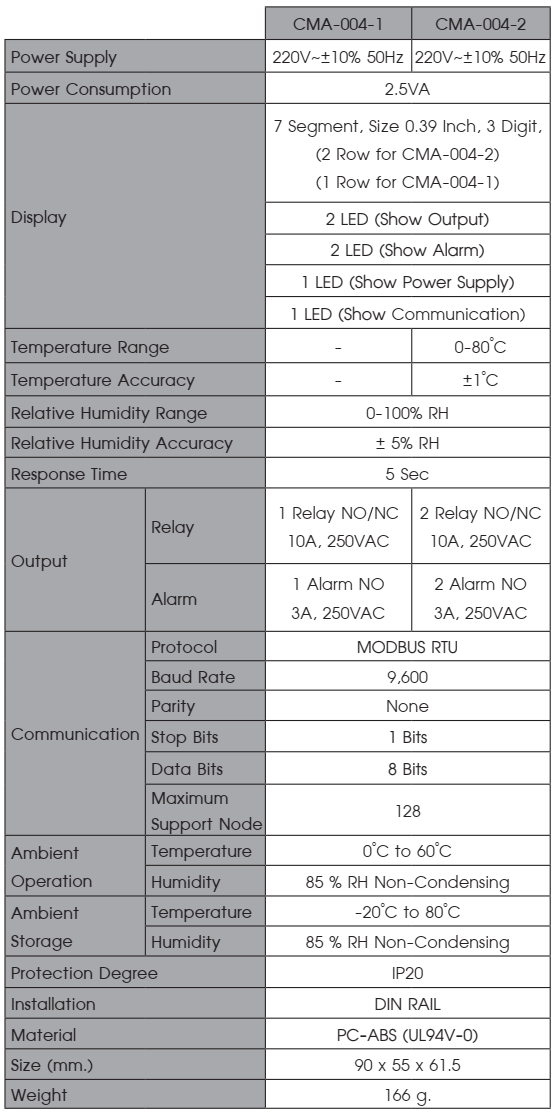

Speciafication

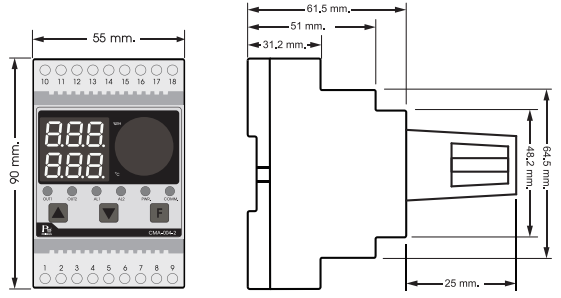

Dimension

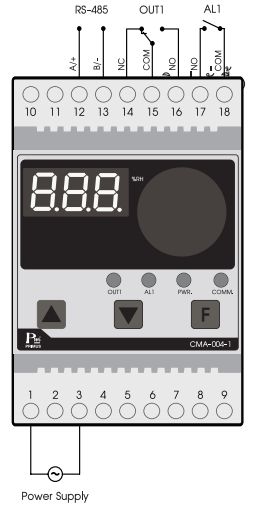

Circuit Diagram

Application

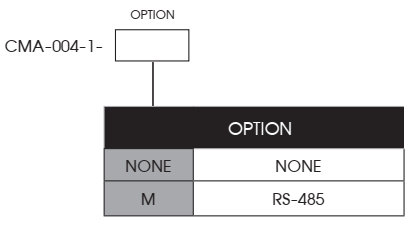

Order Code

Download

DataSheet (1)

Manual (1)
