CMA-001: Thermostat, Analog Thermostat - Gunadaya Solutech

Thumb

CMA-001: Thermostat, Analog Thermostat

Category:

DESCRIPTION
• CMA-001/CMA-001-E are is an analog temperature controller inside the cabinet
• Activate ON/OFF fan to cool the electrical cabinet or control cabinet. In case of higher temperature than set pointCMA-001/CMA-001-E will order. Fan ON to cool and saving electricity and extend the life of the fan
• There are two models available: the model with internal temperature probe (CMA-001) and models with external temperature probe (CMA-001-E)
• Easy to use. Easy installation with DIN RAIL
• Hysteresis 1-5 C to adjust the distance between fan opening and closing

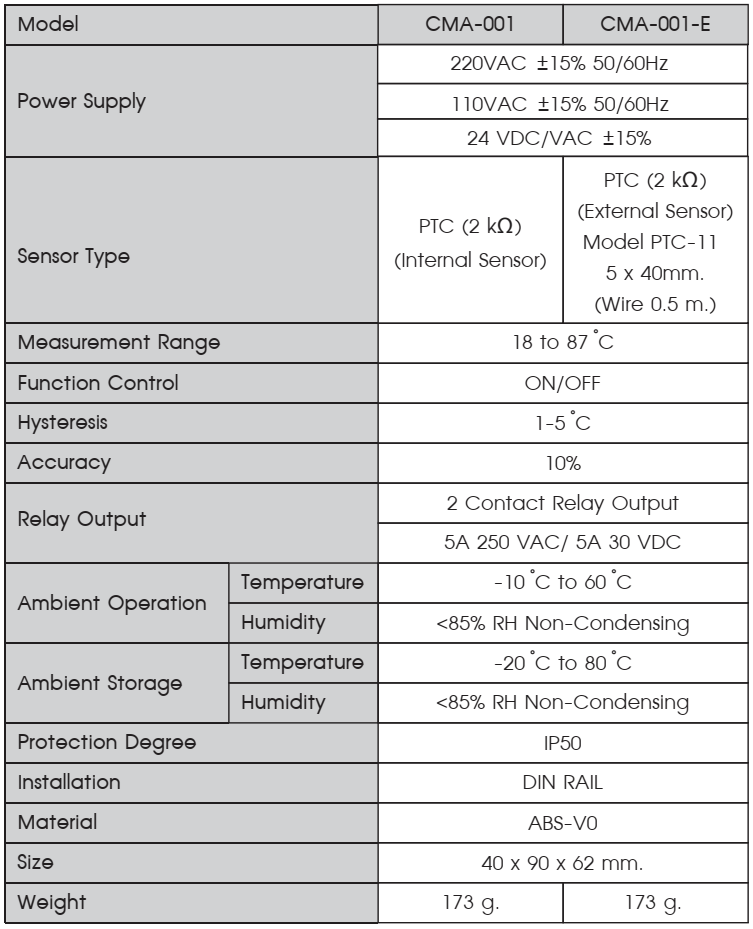

Speciafication

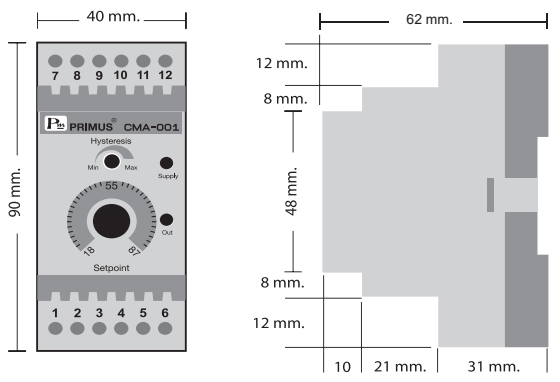

Dimension

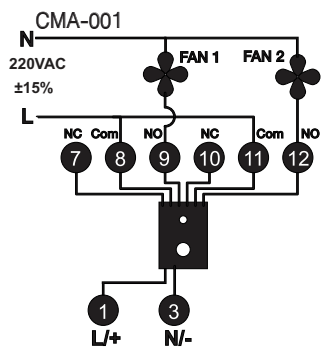

Circuit Diagram

Application

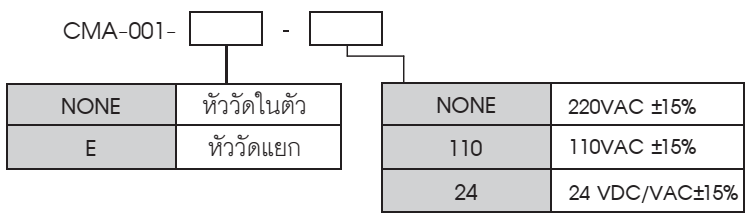

Order Code

Download

DataSheet (1)

Manual (1)
