CM-001 - Gunadaya Solutech


• Tachometer (RPM) receive Input from Photo Switch, Proximity NPN or PNP
• Display by 7-Segment 4 digits size 0.56 inches
CM-001 is a digital tachometer (RPM) display result by 7-Segment size 0.56 inches 4 Digits with a clear vision and organized. A microcontroller can set an automatic adjust Time Base. It made the device prompt response to Low Speed and High Speed for display motor speed from a conveyor. The device can set several pulses in 1 round so the user can measure detailed values quickly in slow round front side and bottoms function

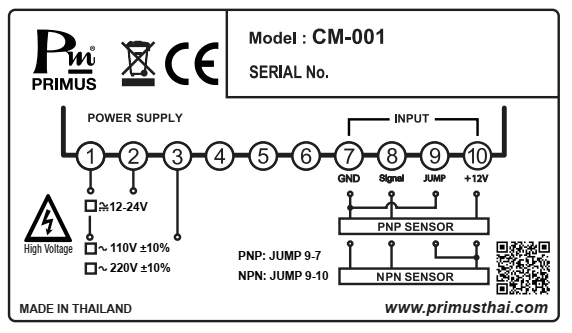

Circuit Diagram

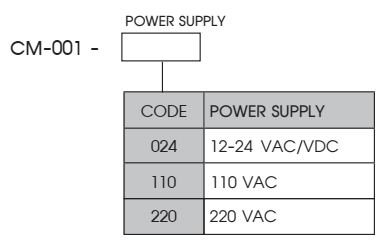

Order Code
