DESCRIPTION
• Conveting Devices Thermocouple, RTD (PT100) and Resistance standard 4-20 mA analog signal
• The Input Type of Thermocouple and Range can be programmed
• Compatible with Thermocouple and Skull RTD (PT100) type

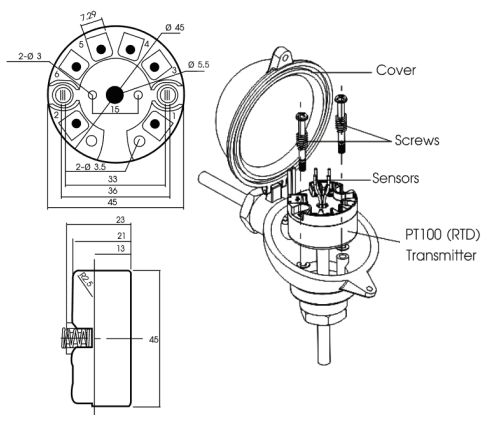

• Compact size Installed to the skull (Bulb)

OPERATION
TM-012P Thermocouple, RTD (PT100) and Resistance Transmitter is convert signal from Thermocouple, RTD (PT100) and Resistance to standard 4-20 mA analog signal for input to PLC, Process Controller or other peripherals

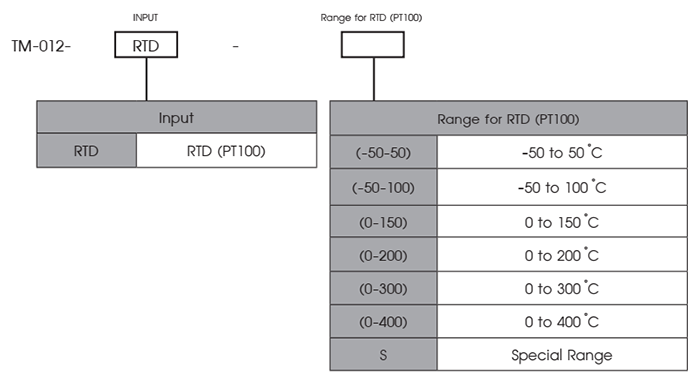

Input can be selected program. Thermocouple Type K, J, E, N, R, S T Include Range of Thermocouple, RTD (PT100) and Resistance using Progrmmable Module RM-TM-012P and Software or choose to specify the type of thermocouple and measurement area. Thermocouple, RTD (PT100) and Resistance as needed

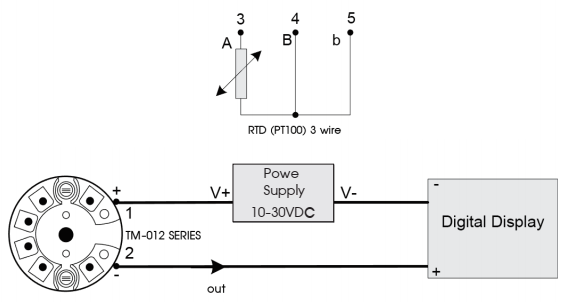

Suitable for remote wiring because it is a 4-20 mA Current Loop is small, compact, can be inserted into the Bulb, thus saving installation space. By the way Thermocouple, RTD (PT100) and Resistor Sensor with Transmitter are the sam Unit without isolation with Transmitter
