VPM-07: Phase Selector 3Phase 380VAC 4Wire

Description

 VPM-07 is a device which supply 1 phase 220 VAC, 5A, 50 Hz
receive voltage 3 phase, 380 VAC, 4 Wire.
 In case the voltage in any phase one or two phase have gone. VPM-07
will choose voltage in the rest of phases supply to system continuously
at Output 2 Load.

2 Output for supply to Shunt TRIP and connect to other loads .
There are 2 model VPM-07-1 is model that can connect external
Phase Protection Relay And VPM-07-2 is model has Phase Protection.
check inside.

Phase Protection Relay Function to protect Over-Under voltage,
Unbalance Phase and Phase sequence (VPM-07-2). Operation will
show on LED OUT3 and Relay Output 3.
Show voltage electrical by Digital 3 digits.
TRUE RMS accuracy.
Din Rail installation

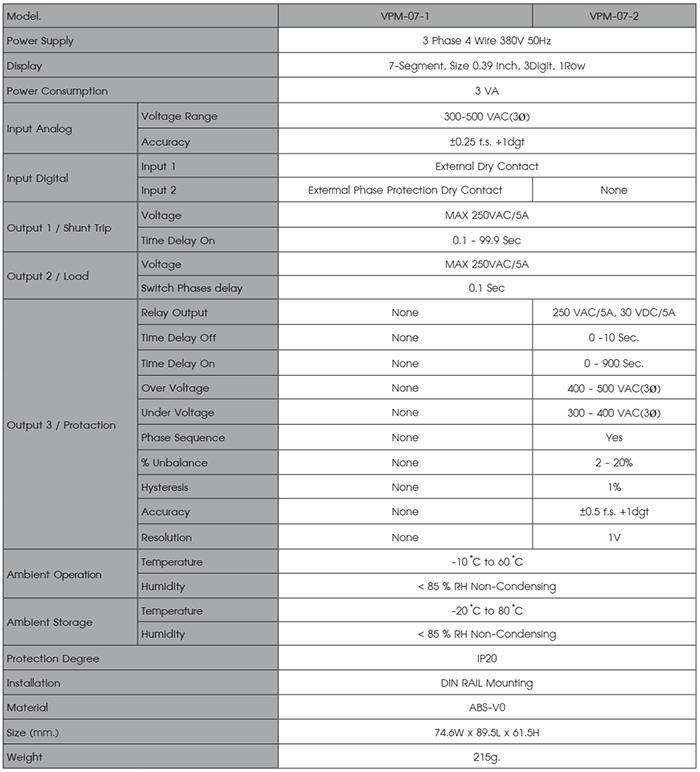

Speciafication

Phase selector,Phase selector relay,Digital phase selector,เฟสซีเล็คเตอร์

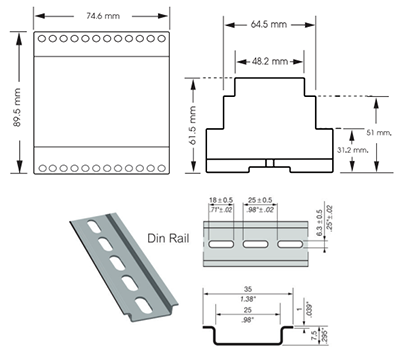

Dimension

Phase selector,Phase selector relay,Digital phase selector,เฟสซีเล็คเตอร์

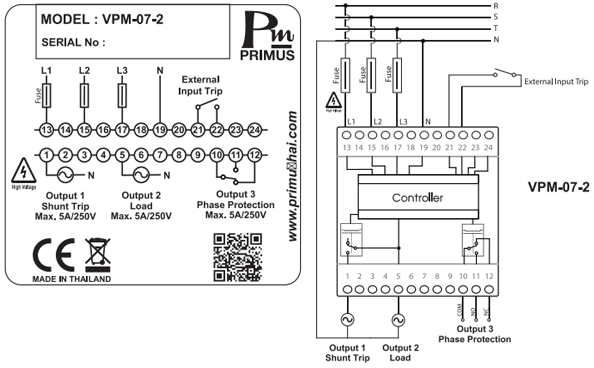

Circuit Diagram

Phase selector,Phase selector relay,Digital phase selector,เฟสซีเล็คเตอร์

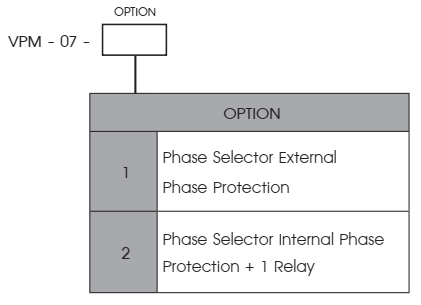

Order Code

Phase selector,Phase selector relay,Digital phase selector,เฟสซีเล็คเตอร์

Download

DataSheet

Manual
