• Device convert signal from RS-232 to RS-485/RS-422 or RS-485/RS-422 to RS-232.
• Able to transmit signal far 1.2 km.
• Auto baud rate 1,200 to 57,600 bps.
• LED Shows operation status of RS-485, USB, Tx, Rx.
• Adaptor 9 VDC to supply voltage to RM-012N-E.
• Maximum device connection 128 devices per 1 RM-012N-E

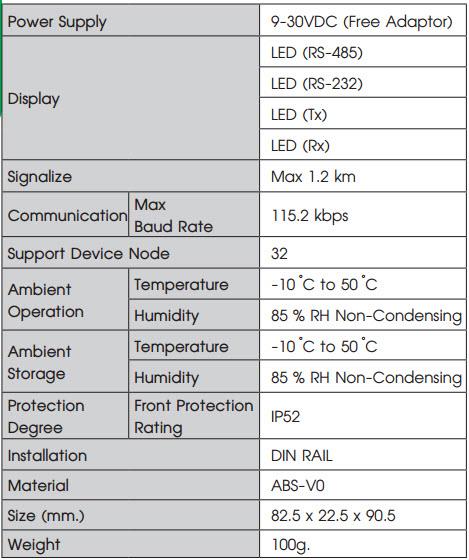

Product spacification

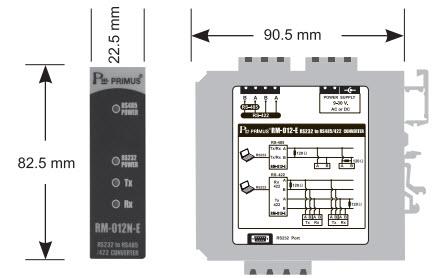

Dimensions

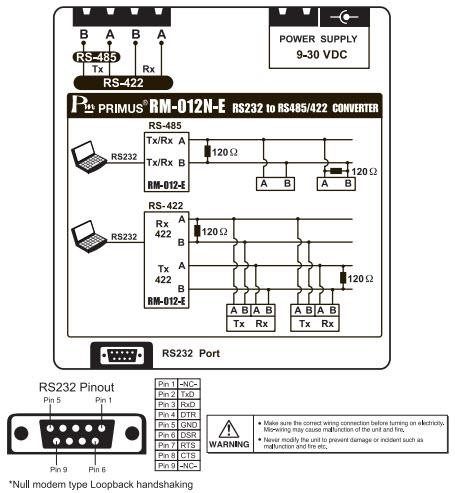

Circuit Diagram

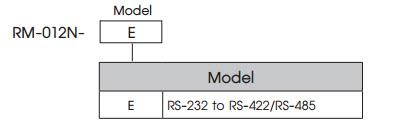

Order Code

Application

Download

DataSheet (2)

• RM-012N-E
• CE-Mark RM-Series

Manual (1)

• RM-012N

---
