DESCRIPTION
PSA-SERIES is a solid state relay. The Phase Angle Control, which controls the phase angle in the Sine Wave signal, changes the input power of the input signal. Suitable for applications requiring control resolution such as lamp brightness or heater heat. For speed control, the PSA-02-25 can be connected to a volume POT. Due to continuous operation and high currents, PSA- SERIES will need to be installed with Heat Sink to keep cool
PSA-Series: Phase Anglel Solid State Relay

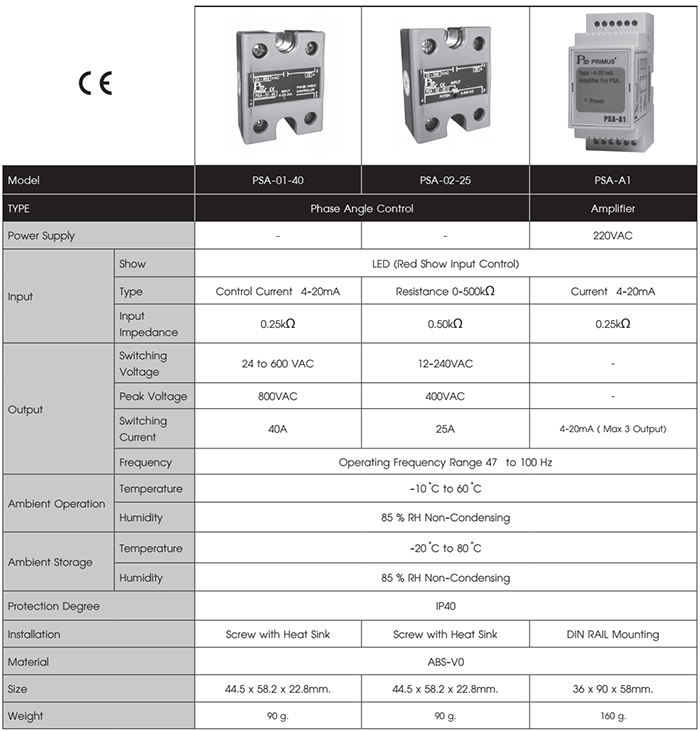

Speciafication

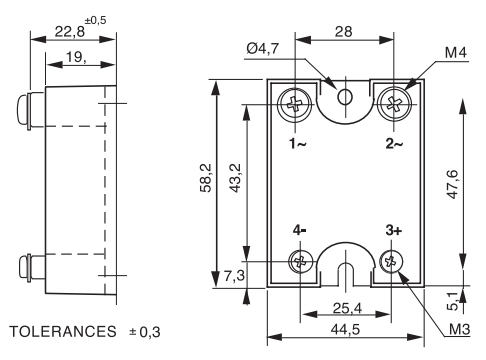

Dimension

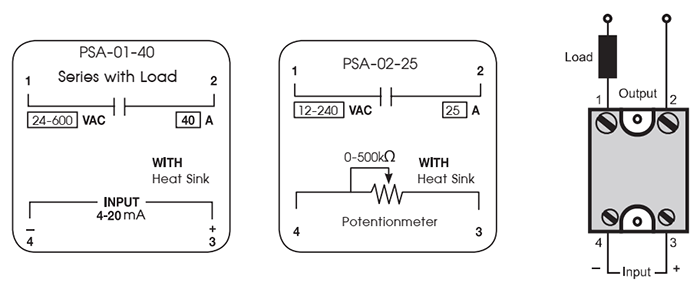

Circuit Diagram
