DESCRIPTION
• AC current detection relays from over/lower current range from 0.5 to 5A
• Can be used with any motor if current exceeds 5A, it can be connected with current transformers.
• The setpoint of the current can be adjusted when the current exceeds or lower than setpoint. Relays are cut off.
• Start delay (S.D.) and delay (O.D) buttons.
• LED display for relay output and LED Show when the excess (Trip)

OPERATION

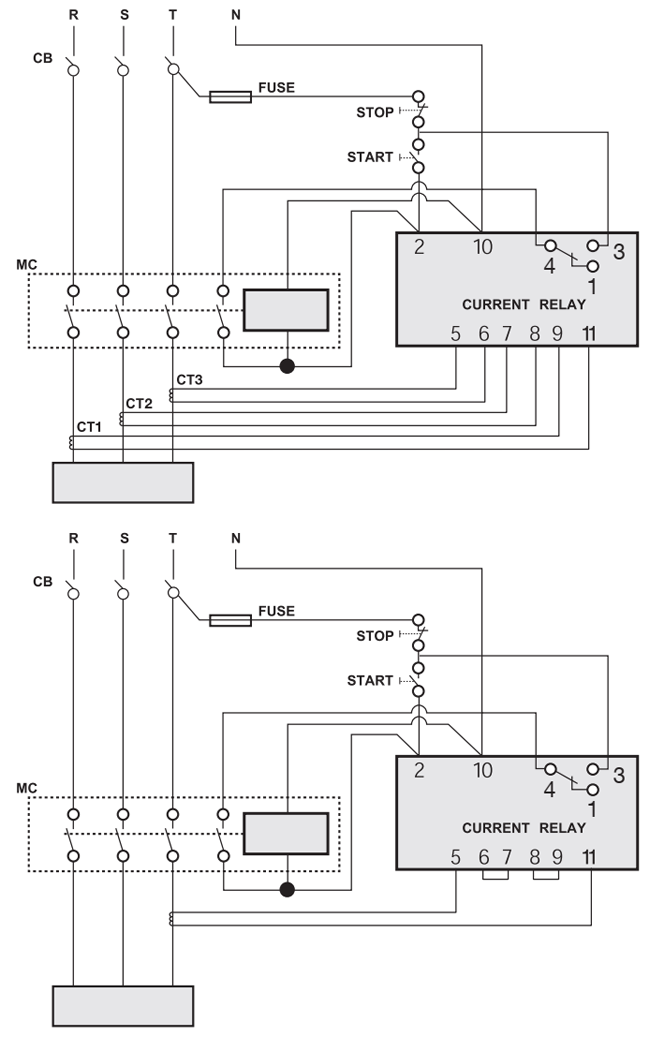

Current relay will receive input from CT SA 3 units, 2 units or 1 unit . It depends on how many check phase.
At startup, it will delay 5-70 seconds (S.D) to prevent circuit breakdown during startup due to higher starting current. If
there are any motor malfunctions. This will make the current exceed the normal and will break the circuit within the time.
0.2-15 seconds (O.D) which can be adjusted to slow or fast as desired. It will be useful in case of over current in short time
and do not want to break the circuit can be extended without stopping the motor.
