Description

• DEF – 03N is a digital controller and display Receive input signal from NTC/PTC
• Display with 7 – Segment Red LED 3 digits

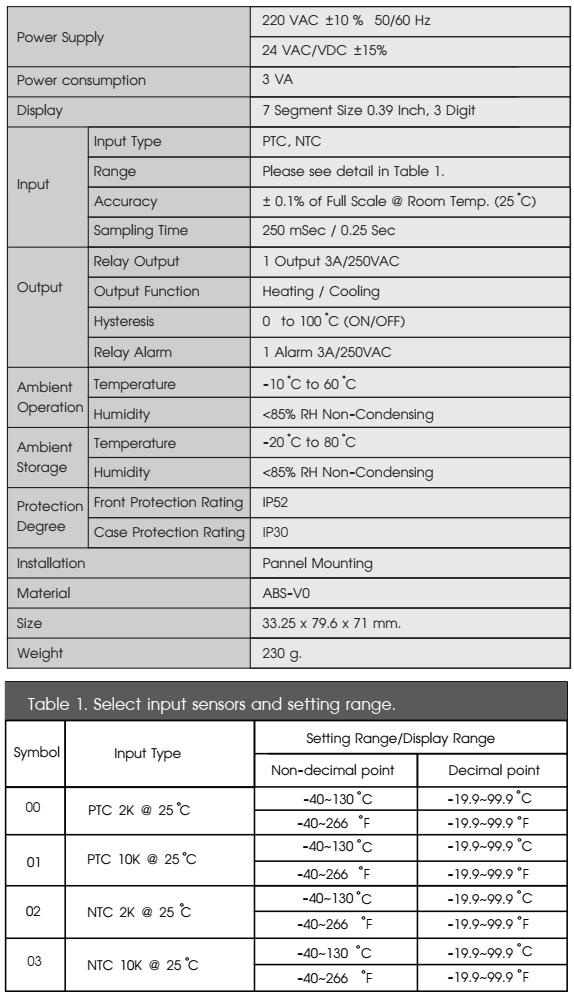

• The temperature display area can be seen in Table 1.
• Can set the decimal point 1 position

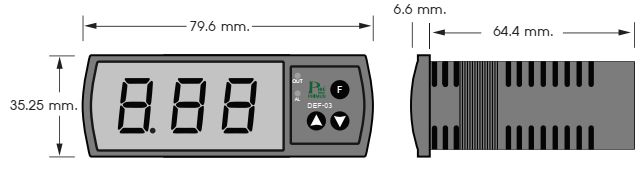

• Compact size Suitable for installation in front of the cabinet with limited space
• 1 set of Main Relay can choose to work as Control / Alarm has 1 alarm relay (Option model only)
• Hysteresis time with 0-99.59 min
•  Relay output can work both Heating and Colling, Hysteresis can be set and make a unit or time value
