Description

ㆍDEF – 04N is a digital controller and display Receive input signal from Thermocouple K,J and PT100 ( RTD )
ㆍDisplay with 7 – Segment Red LED 4 digits

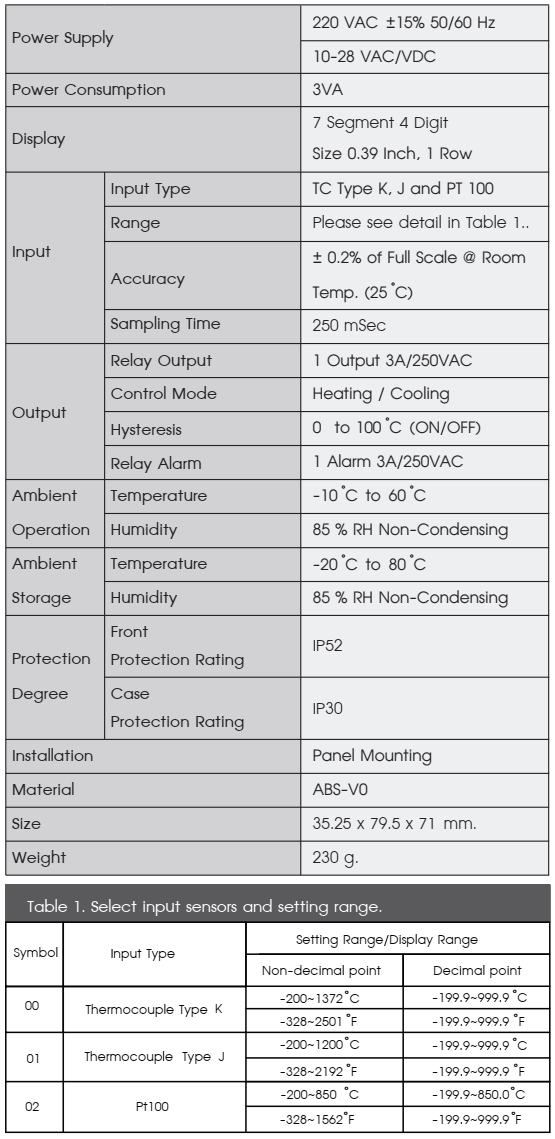

ㆍThe temperature display area can be seen in Table 1.
ㆍCan set the decimal point 1 position

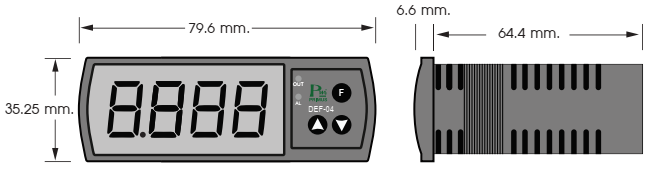

ㆍCompact size Suitable for installation in front of the cabinet with limited space
ㆍ1 set of Main Relay can choose to work as Control / Alarm has 1 alarm relay (Option model only)
ㆍHysteresis time with 0 – 99.59 min
Relay output can work both Heating and Colling, Hysteresis can be set and make a unit or time value
