EM-L/EM-LC-SERIES : Thermocouple Type k,J,R,T,N,S,E,PT100,0-20mA,4-20mA,0-100mA,0-75mVDC,0-150mVDC,0-1VDC,0-10VDC,Signal Transmitter (Programmable)
- Covert electrical signal to be standard analog signal.
- Receive input type DC/AC Current, DC/AC Voltage, Resistance and Multi Input for Thermocouple, PT100 (RTD).
- Can program choose Range in one device.
- Stand Analog Signal Output
- Input, Output isolate from each other(Isolation).
- Output has maximum 2 output.
- DIN RAIL Mounting installation.
- LED shows status power supply
Description

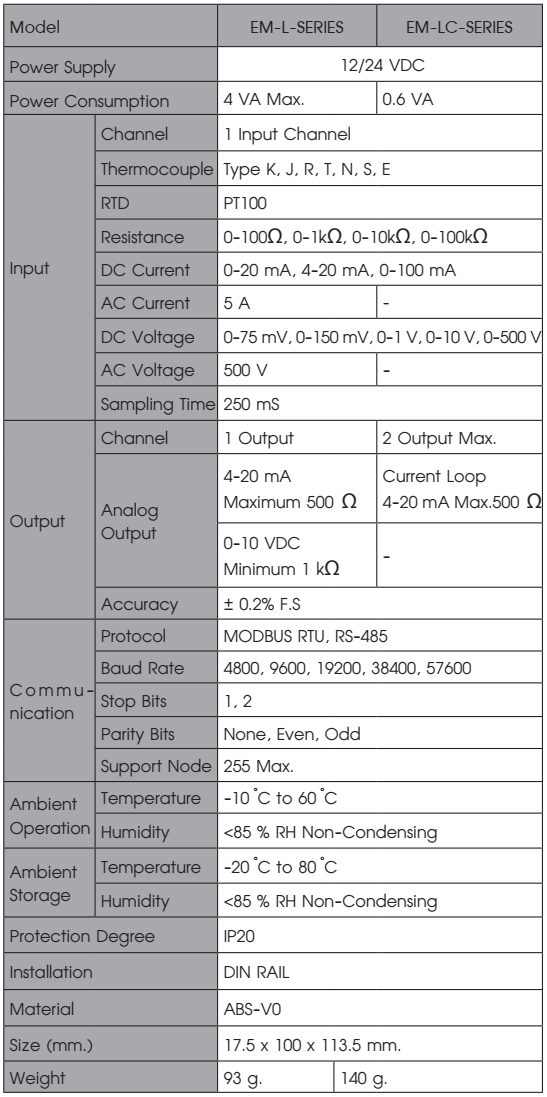

Speciafication
Dimension

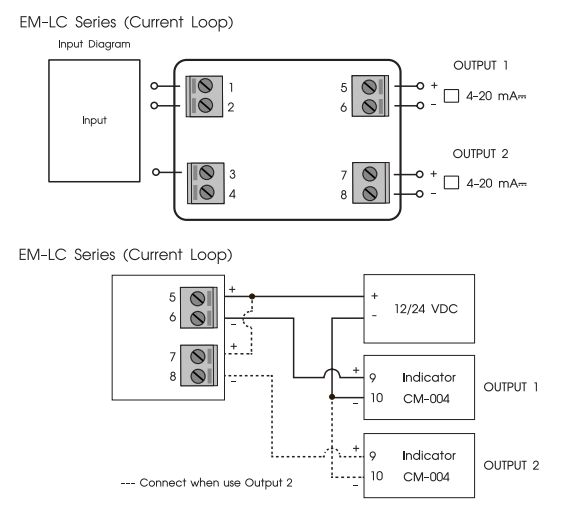

Circuit Diagram

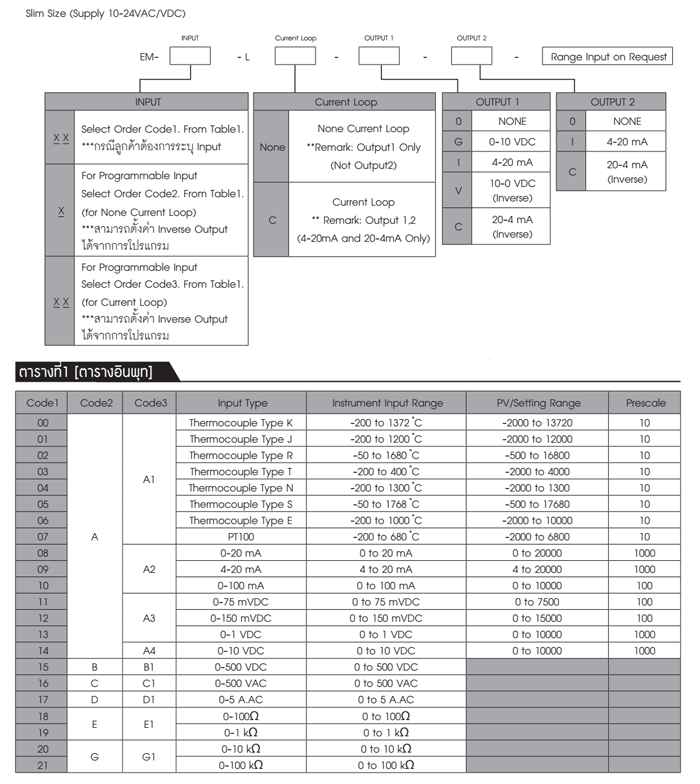

Order Code
Download
DataSheet
Manual
