CP-01,CP-02

CP-01 is a float switch for water level detection and control for high/low water level as needed. It’s typically used in tanks, round and wastewater treatment facilities. The float switch has mercury switch inside and connect to the power cord. Attach the power cord to the top of the tank. When the water level is higher. The float is horizontal. Then the switch in the OFF position, but if the water level is low, the float will be in the vertical position. Make the switch ON
Due to the use of mercury switches, the lifetime is more than 500,000 times. NO+NC contacts can be used to drain water and add water. Use rubber cable to immerse in water

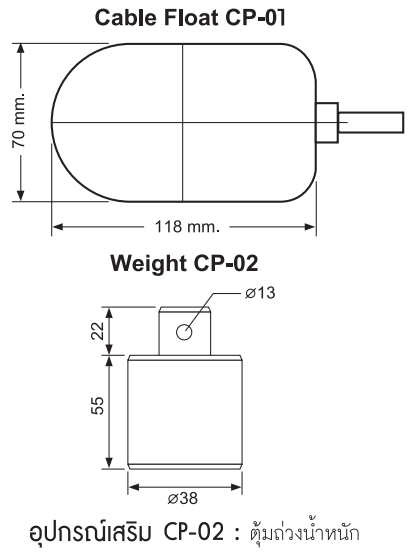

Dimensions

Circuit Diagram

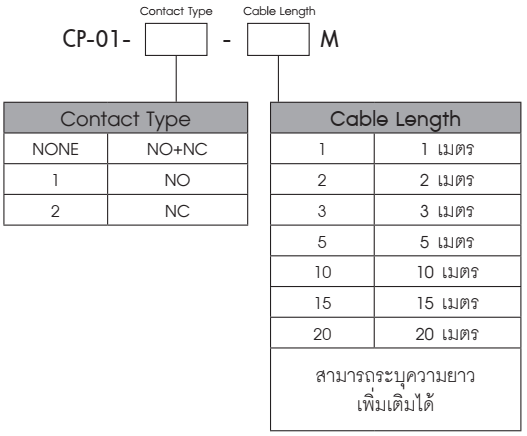

Order Code

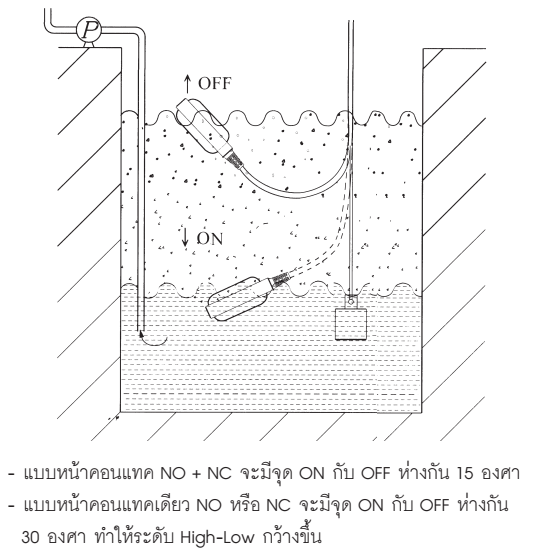

Application
