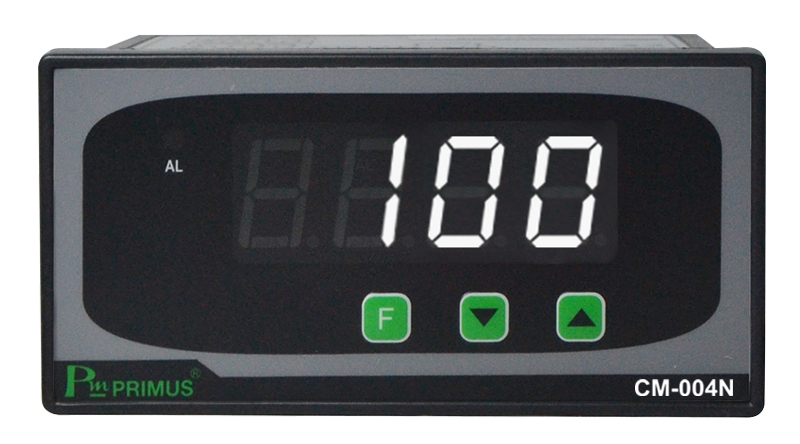

CM-004N: Digital Indicator

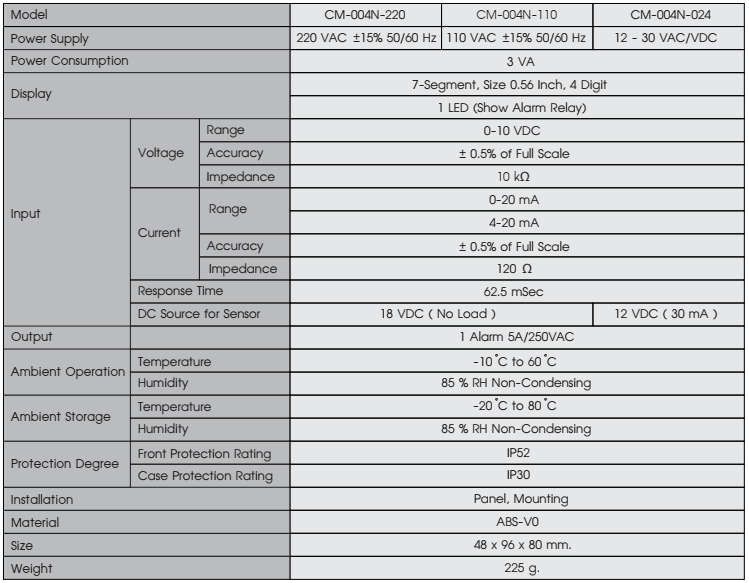

• The CM-004N is a digital display that accepts 0-10 VDC, 0-20 mA and 4-20 mA inputs
• Display with 7-Segment red 4 digits, 0.56 inches
• Outputs from -1999 to 9999 can be set up to 3 decimal places
• High Limit and Low Limit Range can be set by setting the Keypad Switch
• Small, compact. Suitable for mounting the cabinet. With limited space
• Suitable for installation in control cabinet. To show the speed of the motor from the inverter or DC Drive is
• Alarm Function is set by Keypad Switch. There are many options including High Alarm, Low Alarm and High-Low Alarm
• 12VDC power supply for Transducer

• Installed in cabinets.
• Display of all the processes from the standard analog signal
• Food industry
• Chemical industry

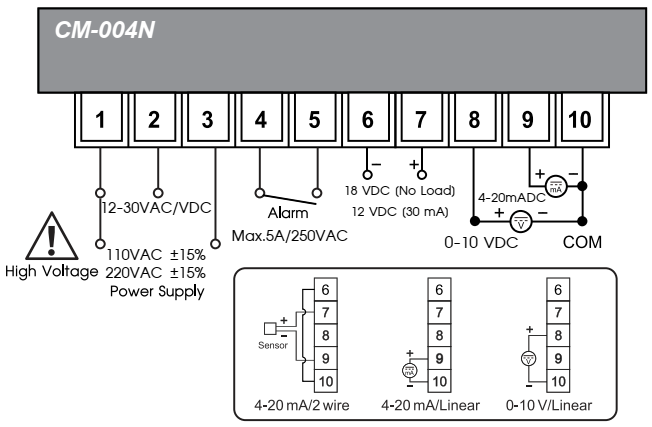

Circuit Diagram

Order Code
